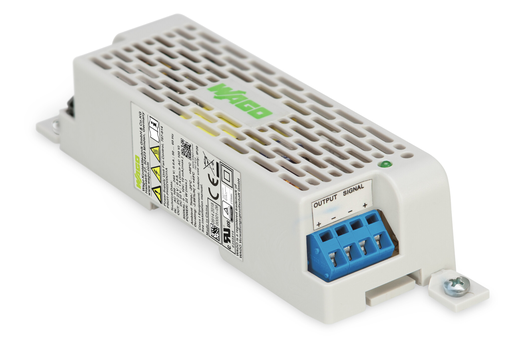

Features

• Power supply for small loads that operate at a variable input voltage
• The output voltage can be adjusted linearly by hand or via an analog voltage signal (0 … 10 V) in the range from 12 to 22 V, e.g., for automatically controlling fan speed in control cabinets.
• Flat design allows installation in confined spaces.
• Variable mounting options for space-saving installation, e.g., in recesses

Approvals

• Underwriters Laboratories Inc., UL, E255815, UL 60950-1

Specifications

Input

• Nominal input voltage Ui nom: AC 100 … 240 V
• Input voltage range: AC 90 … 264 V; DC 130 … 373 V
• Nominal mains frequency range: 47 … 63 Hz; 0 Hz
• Input current Ii: ≤ 0.6 A
• Discharge current: ≤ 1 mA
• Inrush current: ≤ 18 A
• Power factor: ≥ 0.45
• Power factor correction (PFC): Not required
• Mains failure hold-up time: ≥ 15 ms

Output

• Nominal output voltage Uo nom: DC 22 V
• Output voltage range: DC 12 … 22 V (adjustable by hand or via signal input)
• Default setting: DC 22 V
• Nominal output current Io nom: 0.8 A (< 110 VAC); 1 A (110 … 240 VAC)
• Control deviation: ≤ 1 %
• Deviation, dynamic load change 10 … 90 %: ≤ 1 %
• Residual ripple: ≤ 100 mV (Peak-to-peak)
• Overload behavior: Constant power (in overload range: 1.05 … 1.7 x Io nom); Hiccup in the event of a short circuit or permanent overload

Signaling And Communication

• Signaling: 1 x Status indication LED (green) || 1 x Signal input (10 VDC)
• Operation status indicator: Green LED (Uo)
• Input signal (voltage): 0 … 10 V
• Input impedance: 10 kΩ

Efficiency/Power Losses

• Power loss Pl: ≤ 0.8 W (No load)
• Power loss (max.) Pl (max.): 4 W
• Efficiency (typ.): 84 % (230 VAC); 80 % (110 VAC)

Circuit Protection

• Internal fuse: 1 A / 250 VAC
• Recommended backup fusing: Circuit breaker: B6, C4 or higher

Safety And Protection

• Isolation voltage (Pri.-Sec.): DC 4.242 kV
• Protection class: II
• Protection type: IP20 (per EN 60529)
• Reverse voltage protection: Yes (signal input)
• Resistance to reverse feed: ≤ DC 31 V
• Pollution degree: 2
• Transient suppression (primary): Varistor
• Overvoltage protection; secondary: Yes (signal input) || ≤ 31 VDC (output; in the event of a fault)
• Short-circuit-protected: Yes
• Open-circuit-proof: Yes
• Parallel operation: Yes
• Series operation: Yes
• MTBF: > 500,000 h (at 25 °C per IEC 61709)

Connection Data

• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 236 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 45 mm / 1.77 inch
• Height: 138 mm / 5.433 inch
• Depth: 35 mm / 1.38 inch
• Note (dimensions): Height: 156 mm (with fastening clips)

Mechanical Data

• Mounting type: DIN-35 rail || Screw mount

Material Data

• Fire load: 0.000 MJ
• Weight: 160.000 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 60 °C
• Surrounding air temperature (storage): -25 … 75 °C
• Relative humidity: 20 … 90 % (no condensation permissible)
• Derating: -2.47 %/K (> 45 °C)

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: UL 60950 || EN 61204-3 || EN 62368-1 || EN 61000-6-3

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143576239
• Customs tariff number Sales Organisation Germany: 85044082900
