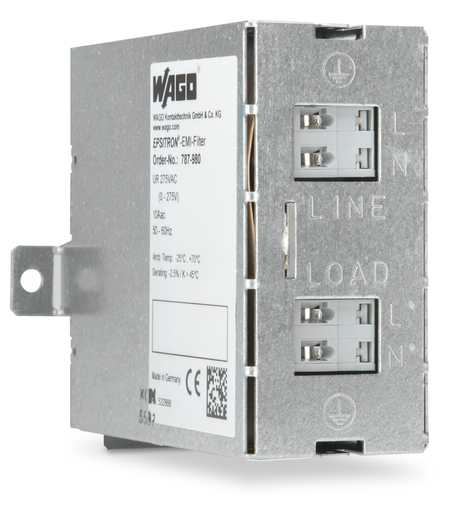

Features

• Suppresses interference generated on the mains side of power supplies and electronic devices
• Fulfills general requirements
• Provides a single-stage filter solution
• Efficiently filters out line-bound interference emissions
• Increases the interference immunity of connected loads

Specifications

Input

• Phases: 1
• Nominal input voltage Ui nom: 1 x AC 250 V
• Input voltage range: AC 0 … 250 V
• Nominal mains frequency range: 50 … 60 Hz
• Input current Ii: ≤ 10 A
• Discharge current: ≤ 8 mA

Efficiency/Power Losses

• Power loss Pl: ≤ 4 W

Safety And Protection

• Isolation voltage (connectors – housing): DC 2.7 kV
• Protection class: I
• Protection type: IP20 (per EN 60529)
• Pollution degree: 2
• Series operation: No

Connection Data

• Connection type (1): L1, N
• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 741 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Connection type 2: GND
• Connection technology 2: Flat connector (6.3 x 0.8 mm)

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 100 mm / 3.937 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 340.000 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C (Device starts at −40 °C (type-tested))
• Derating: -2.5 %/K (> 45 °C)

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: DIN EN 60939-2

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143364515
• Customs tariff number Sales Organisation Germany: 85045000900
