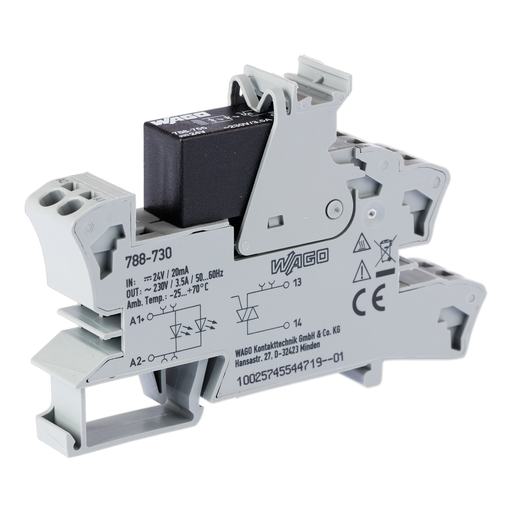

Features

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range (low level): DC 0 … 3 V
• Input voltage range (high level): DC 10 … 30 V
• Nominal input current at UN: 20 mA
• Power loss (max.) Pl (max.): 0.5 W

Load Circuit

• Circuit type: 2-wire connection || Zero-voltage switching
• Limiting continuous current: 3.5 A; 1.3 A (UL)
• Nominal output voltage: AC 230 V
• Output voltage range: AC 12 … 275 V
• Voltage drop at output (max.): ≤ AC 1.1 V
• Switching current (min.): 1 mA
• Turn-on time: ≤ 10 ms
• Turn-off time: ≤ 10 ms
• Switching frequency: 50 Hz / 60 Hz

Signaling

• Status indicator: Green LED

Safety And Protection

• Rated voltage: 300 V
• Overvoltage category: II
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3.51 kVrms
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the the same type): Double insulation (safe isolation)
• Insulation type (to any type of adjacent devices): Basic insulation
• Protection type: IP20

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 15 mm / 0.591 inch
• Height from upper-edge of DIN-rail: 54 mm / 2.126 inch
• Depth: 86 mm / 3.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.645 MJ
• Weight: 41.600 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air (operating) temperature for UL: -25 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Processing temperature: -25 … +50 °C
• Max. temperature rise of connection cable: 35 K
• Relative humidity: ≤ 95% (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 61000-6-2 || EN 61000-6-3 || EN 61373

Basic Relay

• WAGO Basic Relay: 788-755

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143900263
• Customs tariff number Sales Organisation Germany: 85365005000
