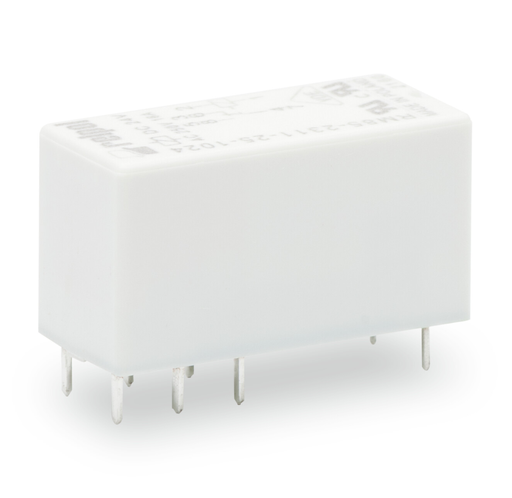

Features

Approvals

• Underwriters Laboratories Inc., UL, E340707, UL 508

Specifications

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range (low level): DC 0 … 9 V
• Input voltage range (high level): DC 10 … 30 V
• Nominal input current at UN: 11 mA

Load Circuit

• Circuit type: 2-wire connection
• Limiting continuous current: 5 A
• Nominal output voltage: DC 24 V
• Output voltage range: DC 0 … 35 V
• Voltage drop at output (max.): ≤ DC 0.3 V
• Switching current (min.): 1 mA
• Turn-on time: ≤ 50 µs
• Turn-off time: ≤ 250 µs
• Switching frequency: ≤ 3 kHz

Signaling

• Status indicator: Green LED

Safety And Protection

• Dielectric strength, control/load circuit (AC, 1 min): 3.51 kVrms

Physical Data

• Width: 12.7 mm / 0.5 inch
• Height from the surface: 15.7 mm / 0.618 inch
• Depth: 29 mm / 1.142 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.000 MJ
• Weight: 4.000 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -30 … 80 °C
• Surrounding air temperature (storage): -40 … 100 °C

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 61000-6-2 || EN 61000-6-3 || EN 61373

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143919258
• Customs tariff number Sales Organisation Germany: 85364190890
