Features

• All-new, low-power output design with picoMAX®
• Assembly via side latches
• Can be mounted directly on an ECB

Specifications

Notes

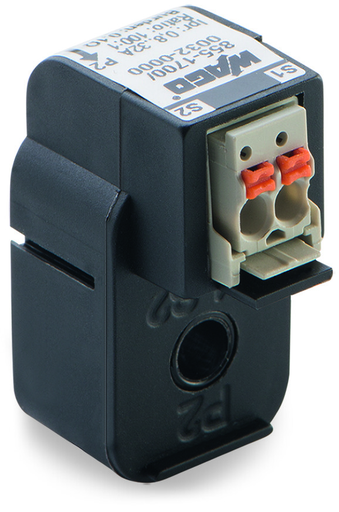

• Note: The 855-1700/032-000 Plug-In Current Transformer is exclusive to the WAGO I/O System and shall only be used with WAGO's 750 Series 3-Phase Power Measurement Modules.Recommended conductor cross-section and length: 1.5 mm² (14 AWG) and maximum 3.0 m at the outputMeasurement range: 0.8 to 32 A in combination with the 3-Phase Power Measurement Modules (750-493/-494/-495)Testing adheres to EN 61869-2 with a conversion ratio of 16 A/0.16 A (accuracy class: 0.5) and an extended primary current of 200%.

Input – Current Transformer

• Primary rated current: 32 A
• Rated short-time thermal current Ith: 2 kA / 0.1 s
• Rated surge current Idyn: 2.5 x Ith
• Rated frequency: 50 … 60 Hz

Output – Current Transformer

• Secondary rated current: 0.32 A
• Rated power Sr: 0.01 VA

Measurement Error

• Accuracy class: 0.5

Test Voltage

• Test voltage: AC 3 kV; 50 Hz; 1 min

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: picoMAX® 3.5, 2091-1122
• Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Feedthrough for measurement conductor: Ø 5.0 mm

Physical Data

• Width: 17 mm / 0.669 inch
• Height: 34 mm / 1.339 inch
• Depth: 23 mm / 0.906 inch

Mechanical Data

• Mounting type: Closed current transformer || Mounting on round cable

Material Data

• Insulation class: E
• Housing material: PA 66
• Fire load: 0.000 MJ
• Weight: 11.000 g

Environmental Requirements

• Surrounding air temperature (operation): -10 … 55 °C
• Surrounding air temperature (storage): -20 … 70 °C
• Relative humidity: 5 … 85 % (without condensation)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61869-2 || EN 61010-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: NL
• GTIN: 4055143333436
• Customs tariff number Sales Organisation Germany: 85043129900
