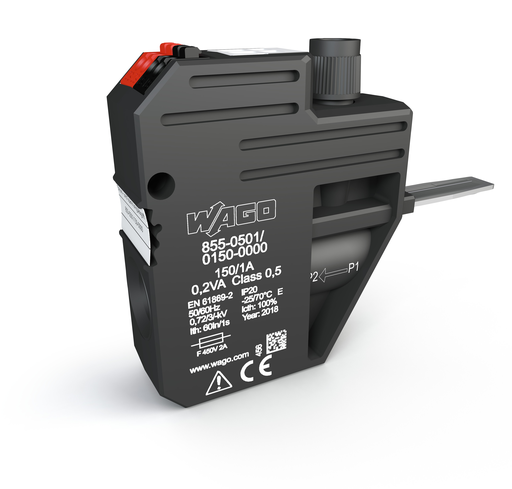

Features

• Current transformer (S1 and S2) can be short circuited via jumper (2000-402)
• Direct ‘Y’ point jumper on current transformer
• Power data can be directly tapped into the power supply
• Easy installation – simply insert the tap into the jumper slot of the 50 mm² (1/0 AWG) high-current through terminal block
• Integrated current transformer (150 A/1 A)
• Accuracy class: 0.5
• Fuse-protected voltage path

Specifications

Notes

• Note: Suitable for 2-conductor through terminal blocks for DIN-rail mounting (285-150; 285-154)Suitable for 2-conductor through terminal blocks with mounting flanges (285-141; 285-144)Spare fuse: WAGO 855-8020

Input – Current Transformer

• Primary rated current: 150 A
• Rated continuous thermal current Icth: 150 A
• Rated short-time thermal current Ith: 9 kA / 1 s
• Rated surge current Idyn: 22.5 kA
• Rated frequency: 50 … 60 Hz

Output – Current Transformer

• Secondary rated current: 1 A
• Rated power Sr: 0.2 VA

Output – Voltage Tap

• Rated voltage: AC 400 V
• Fuse (voltage path): 2 A; 450 V; F; 70 kA; 5 x 25 mm (WAGO 855-8020)

Measurement Error

• Accuracy class: 0.5

Test Voltage

• Test voltage: AC 3 kV; 50 Hz; 1 min

Connection Data

• Connection type (1): Current output
• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: WAGO 250 Series
• Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Strip length: 8.5 … 9.5 mm / 0.33 … 0.37 inch
• Connection type 2: Voltage output
• Connection technology 2: Push-in CAGE CLAMP®
• WAGO Connector 2: WAGO 2624 Series
• Solid conductor 2: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor 2: 0.2 … 6 mm² / 24 … 10 AWG
• Strip length 2: 10 … 12 mm / 0.39 … 0.47 inch
• Feedthrough for measurement conductor: Ø ≤ 12 mm

Physical Data

• Width: 20 mm / 0.787 inch
• Height: 68 mm / 2.677 inch
• Depth: 57 mm / 2.244 inch

Mechanical Data

• Mounting type: Via 2-conductor high-current through terminal block's jumper slot

Material Data

• Flammability class per UL94: V2
• Housing material: PA 66
• Fire load: 0.000 MJ
• Weight: 66.000 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -25 … 70 °C
• Relative humidity: 5 … 85 % (without condensation)
• Operating altitude (max.): 2000 m
• Vibration resistance: 10g (industry; 5 … 2000 Hz; per IEC 60068-2-6); 4g (ship; 5 … 150 Hz; per IEC 60068-2-6)

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 61869-2 || EN 60947-7-3

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: NL
• GTIN: 4055143782760
• Customs tariff number Sales Organisation Germany: 85043180888
