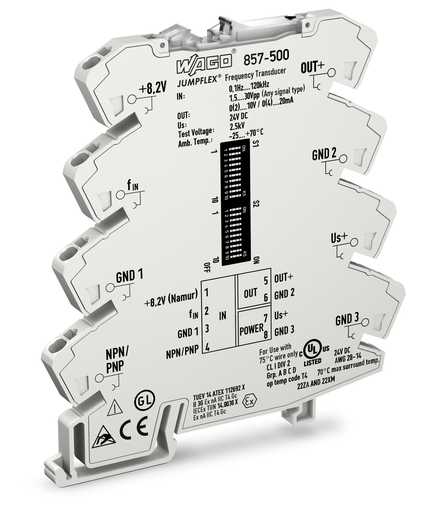

Features

• PC configuration interface
• Signal acquisition from NAMUR, NPN or PNP sensors
• Calibrated measurement range switching
• Safe 3-way isolation with 2.5 kV test voltage per EN 61140

Approvals

• TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
• CQST/CNEx, CCCEx, 2020312310000210, CNCA-C23-01
• Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
• TUEV Nord Cert GmbH, IECEx, TÜV_14_ATEX_112692_X, EN 60079-0
• Polski Rejestr Statków, PRS, TE/2186/880590/18
• UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1

Specifications

Configuration

• Configuration options: DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App

Input

• Input signal type: Frequency generators || NAMUR sensors || NPN/PNP transistor outputs || Mechanical contact (dry contact)

Input – Sensor Type 1

• Sensor type 1: Frequency generator || NPN/PNP transistor output with pull-up or pull-down resistor
• Measurement range (frequency) 1: 0.1 Hz … 120 kHz
• Measurement span 1 (min.): 10 Hz
• Signal level: 1.5 V; 10 V; 20 V (switchable)
• Input voltage (max.): ± ± DC 31.2 V
• Signal form: Any
• Coupling: AC/DC (adjustable; AC above 10 Hz)
• Input resistance: 10 kΩ

Input – Sensor Type 2

• Sensor type 2: NAMUR sensor (DIN EN 50227)
• Measurement range (frequency) 2: 0.1 Hz … 1 kHz
• Pulse length 2: ≥ 500 µs
• Measurement span 2 (min.): 10 Hz
• Sensor supply: DC 8.2 V
• Signal current (0): ≤ 1.2 mA
• Signal current (1): ≥ 2.1 mA
• Hysteresis: 0.45 mA
• Short-circuit monitoring: ≥ 4.7 mA
• Wire break monitoring: ≤ 0.2 mA
• Input resistance 2: ≤ 600 Ω

Input – Sensor Type 3

• Sensor type 3: NPN/PNP transistor output without pull-up or pull-down resistor || Mechanical contact (dry contact)
• Measurement range (frequency) 3: 0.1 Hz … 20 kHz
• Pulse length 3: ≥ 25 µs
• Measurement span 3 (min.): 100 Hz
• Open-circuit voltage: DC 5 V
• NPN residual voltage: ≤ 1.5 V
• PNP switching voltage: ≥ 7.5 V (+ residual voltage UCE sat)

Output – Analog

• Output signal type: Current || Voltage
• Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
• Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
• Load impedance (voltage output): ≥ 2 kΩ
• Load impedance (current output): ≤ 600 Ω

Signal Processing

• Conversion time: Peak-time measurement method (> 400 Hz): < 20 ms; Pulse time measurement method (< 400 Hz): < 200 μs + TCycle duration

Measurement Error

• Transmission error (typ.): ≤ 0.1 % of upper-range value
• Temperature coefficient: ≤ 0.01 %/K

Supply

• Power supply type: 24 VDC
• Nominal supply voltage US: DC 24 V
• Supply voltage range: ±30 %
• Power consumption at nominal supply voltage: ≤ 40 mA

Test Voltage

• Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.762 MJ
• Weight: 36.200 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2
• EMC emission of interference: EN 61000-6-4
• Standards/Specifications: EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821226741
• Customs tariff number Sales Organisation Germany: 85437090300
