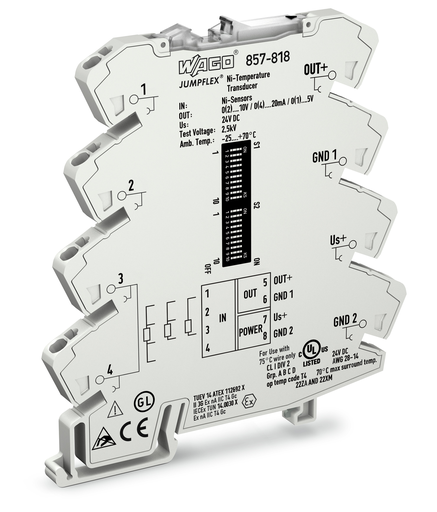

Features

• For Ni100, Ni120, Ni200; Ni500 and Ni1000 sensors
• Calibrated measurement range switching
• Clipping capability for analog signal limitation to output end values
• Safe 3-way isolation with 2.5 kV test voltage per EN 61140

Approvals

• Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
• TUEV Nord Cert GmbH, IECEx, TÜV_14_ATEX_112692_X, EN 60079-0
• CQST/CNEx, CCCEx, 2020312310000210, CNCA-C23-01
• TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
• Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
• UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
• Polski Rejestr Statków, PRS, TE/2186/880590/18

Specifications

Configuration

• Configuration options: DIP switch

Input

• Input signal type: Ni sensors
• Input voltage (max.): ±31.2 VDC

Input – Rtd Sensors

• Sensor types (RTD): Ni100 || Ni120 || Ni200 || Ni500 || Ni1000
• Sensor connection: 2-wire; 3-wire; 4-wire (switchable)

Output – Analog

• Output signal type: Current || Voltage
• Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
• Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
• Load impedance (voltage output): ≥ 2 kΩ
• Load impedance (current output): ≤ 600 Ω

Signal Processing

• Step response (typ.): 60 ms (2-wire); 120 ms (3-wire); 30 ms (4-wire)

Measurement Error

• Transmission error (typ.): ≤ 0.1 % of upper-range value

Supply

• Power supply type: 24 VDC
• Nominal supply voltage US: DC 24 V
• Supply voltage range: ±30 %
• Power consumption at nominal supply voltage: ≤ 40 mA

Test Voltage

• Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Fire load: 0.000 MJ
• Weight: 60.500 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2
• EMC emission of interference: EN 61000-6-4

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821099789
• Customs tariff number Sales Organisation Germany: 85437090300
