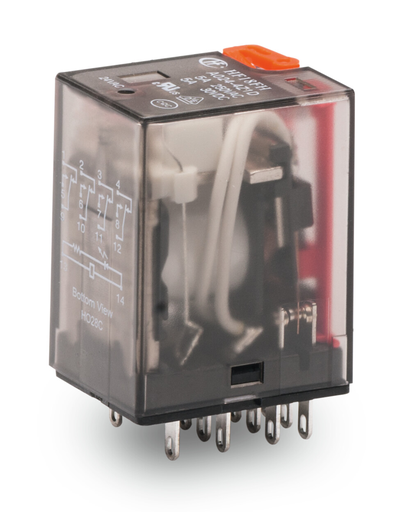

Specifications

Control Circuit

• Nominal input voltage UN: AC 24 V
• Nominal input current at UN: 50 mA

Load Circuit

• Number of changeover/switchover contacts: 4
• Contact material (relay): AgCe
• Limiting continuous current: 5 A
• Inrush current (resistive) (max.): (AC) 15 A / 4 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1250 VA; DC (see load limit curve)
• Recommended minimum load: 12 V / 100 mA
• Pull-in time (typ.): 25 ms
• Drop-out time (typ.): 25 ms
• Bounce time (typ.): 4 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 20 x 106 switching operations

Signaling

• Status indicator: Red LED || Mechanical

Safety And Protection

• Dielectric strength, control/load circuit (AC, 1 min): 1.5 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms
• Protection type: IP20

Physical Data

• Width: 21.5 mm / 0.846 inch
• Height from the surface: 35 mm / 1.378 inch
• Depth: 28 mm / 1.102 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.000 MJ
• Weight: 33.600 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C

Standards And Specifications

• Standards/Specifications: EN 61810-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143532075
• Customs tariff number Sales Organisation Germany: 85364900990
