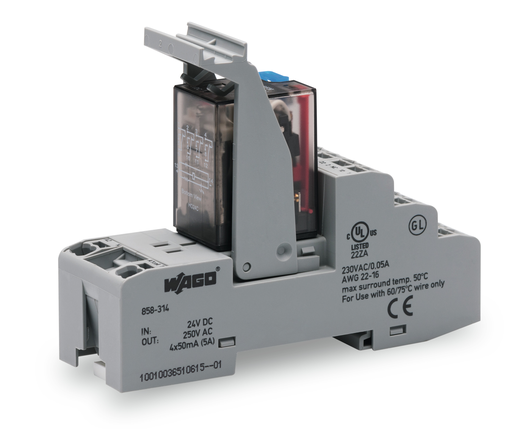

Features

Approvals

• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
• UL International Netherlands B.V., UL, E175199 Sec.6, UL 508
• Polski Rejestr Statków, PRS, TE/2186/880590/18
• Nippon Kaiji Kyokai, NK, TA17255M

Specifications

Notes

• Note: To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range: -20 … +10 %
• Nominal input current at UN: 36.9 mA

Load Circuit

• Number of changeover/switchover contacts: 4
• Contact material (relay): AgCe + Au
• Limiting continuous current: 5 A
• Inrush current (resistive) (max.): (AC) 15 A / 4 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1250 VA; DC (see load limit curve)
• Switching capacity: AC-15: 1 A / AC 240 V; DC-13: 2 A / DC 24 V
• Recommended minimum load: 5 V / 1 mA / 50 mW
• Pull-in time (typ.): 25 ms
• Drop-out time (typ.): 25 ms
• Bounce time (typ.): 4 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 20 x 106 switching operations

Signaling

• Status indicator: Red LED || Mechanical

Safety And Protection

• Rated voltage: 300 V
• Rated surge voltage: 2.5 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 1.5 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms
• Insulation type (control/load circuit): Basic insulation
• Insulation type (load/load circuit): Basic insulation
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Protection type: IP20

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
• Fine-stranded conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Note (conductor cross-section): 2 x 0.34 … 2 x 1.5 mm² / 1 x 2.5 mm² / 2 x 22 … 2 x 16 AWG

Physical Data

• Width: 31 mm / 1.22 inch
• Height: 97 mm / 3.819 inch
• Depth from upper edge of DIN-rail: 73 mm / 2.874 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Mounting position: Horizontal (standing/lying); vertical

Material Data

• Fire load: 1.226 MJ
• Weight: 97.500 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 %
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 61810-1 || EN 61373 || GL || UL 508 (max. 50 °C)

Basic Relay

• WAGO Basic Relay: 858-152

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143567893
• Customs tariff number Sales Organisation Germany: 85364900990
