Features

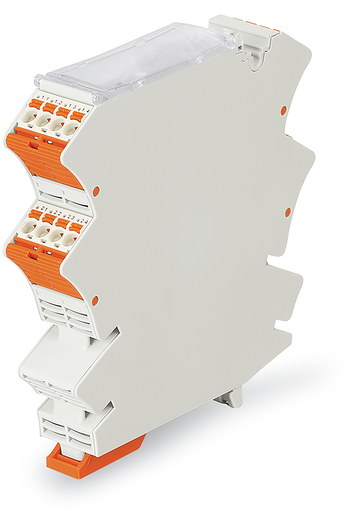

• picoMAX® Female Connectors, with coding keys, 4-pole
• Pre-assembled unit
• Flexible conductor termination
• Customizable connection levels
• Various marking options available
• Sealable, transparent cover
• Commoning via jumpers (859-402)

Approvals

• UL International Germany GmbH, UL, E45172, UL 1059

Specifications

Ratings Per Iec/En 60664-1

• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 16 A

Ratings Per Ul 1059

• Rated current UL (Use Group D): 10 A
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 300 V

Ratings Per Csa

• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 15 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection Data

• Pole No.: 4
• Number of levels: 2
• Number of jumper slots: 4
• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with uninsulated ferrule: 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 22.5 mm / 0.886 inch
• Height: 108 mm / 4.252 inch
• Depth from upper edge of DIN-rail: 107 mm / 4.213 inch
• Pin spacing: 5 mm / 0.197 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Flammability class per UL94: V0
• Housing material: PC
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Fire load: 1.807 MJ
• Weight: 93.490 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821561422
• Customs tariff number Sales Organisation Germany: 85472000900
