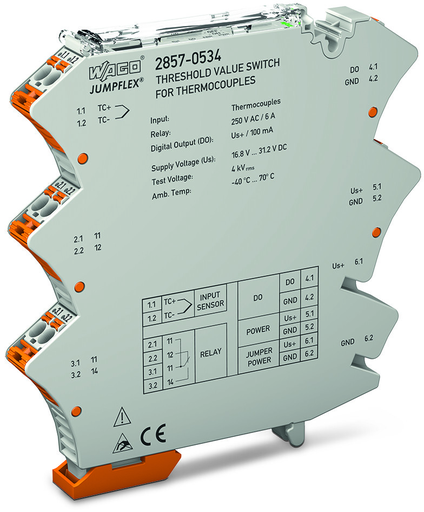

Features

• Both digital signal output and relay with changeover contact react to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values).
• Adjustable software filter
• Input/output response simulation via configuration display
• Safe 3-way isolation with 4 kV test voltage per EN 61140

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Notes

• Note: This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 2 A is not exceeded.Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App

Configuration

• Configuration options: DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App || WAGO Configuration Display

Input

• Input signal type: TC sensors

Input – Tc Sensors

• Sensor types (TC): Type J || Type K || Type E || Type N || Type R || Type S || Type T || Type B || Type C
• Temperature measurement range (TC): -210 … 1200 °C (Type J); -200 … 1372 °C (Type K)
• Cold junction compensation: ON/OFF (default: ON)
• Cold junction error: 3 K (typ. 2 K )

Output – Digital

• Switching voltage (DO) (max.): Supply voltage (applied): −0.3 V
• Continuous current (DO) (max.): 100 mA (no internal restriction)
• Number of switching thresholds (DO): 1 or 2 (adjustable)
• Configurable rise/fall delay time (DO): 0 … 60 s (via software)

Output – Relay

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgNi + Au
• Switching voltage (max.): AC 250 V
• Limiting continuous current (relay; module assembly): 6 A (≤ 60 °C); 3 A (60 … 70 °C)
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Pull-in time (typ.): 8 ms
• Drop-out time (typ.): 4 ms
• Bounce time (typ.): 8 ms
• Number of switching thresholds (relay): 1 or 2 (adjustable)
• Configurable rise/fall delay time (relay): 0 … 60 s (via software)

Signal Processing

• Software filter (adjustable): Moving average value (filter level: 30)
• Hysteresis: Adjustable via DIP switch or software
• Step response (typ.): 60 ms (Cold junction compensation (Off)); 360 ms (Cold junction compensation (ON))

Measurement Error

• Transmission error (max.): ± 1 K
• Temperature coefficient: ≤ 0.01 %/K

Supply

• Power supply type: 24 VDC
• Nominal supply voltage US: DC 24 V
• Supply voltage range: ±30 %
• Power consumption at nominal supply voltage: ≤ 40 mA (+ IDO)

Test Voltage

• Test voltage (input/relay output/supply): 4 kVAC; 60 Hz; 1 min
• Test voltage (input/service interface): 3 kVAC; 60 Hz; 1 min
• Test voltage (relay output/service interface): 4 kVAC; 60 Hz; 1 min
• Test voltage (supply/service interface): 2.5 kVAC; 60 Hz; 1 min

Insulation Parameters Per En/Ul 61010-1

• Line-to-neutral conductor voltage (AC) max.: 300 V
• Overvoltage category: II
• Pollution degree: 2
• Insulation type (input, supply and service interface/relay output): Reinforced insulation
• Insulation type (input/supply/service interface): Basic insulation

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: picoMAX® 5.0
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 12.5 mm / 0.492 inch
• Height: 110 mm / 4.331 inch
• Depth from upper edge of DIN-rail: 107 mm / 4.213 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 1.391 MJ
• Weight: 63.920 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 10 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 90 °C

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
• EMC emission of interference: EN 61000-6-4; EN 61326-2-3; EN 50121-3-2
• Standards/Specifications: EN 61010-1 || EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143242318
• Customs tariff number Sales Organisation Germany: 90303370000
