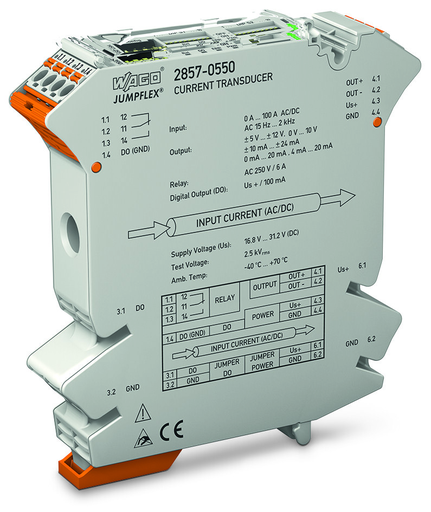

Features

• Both digital signal output and relay with changeover contact react to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values).
• Clipping capability for analog signal limitation to output end values
• Adjustable software filter
• Input/output response simulation via configuration display
• Safe 3-way isolation with 3 kV test voltage per EN 61010-1

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Notes

• Note: This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 2 A is not exceeded.Additional setting options via WAGO Interface Configuration Software or WAGO Configuration Display

Configuration

• Configuration options: DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App || WAGO Configuration Display

Input

• Input signal type: Current
• Input signal (current): AC 0.5 … 100 A DC ±100 A
• Frequency range: 15 … 1000 Hz
• Input current (max.): 100 A AC/DC
• Response threshold: 500 mA (AC); 250 mA (DC)
• Resolution (current): 10 mA

Output – Analog

• Output signal type: Current || Voltage
• Output signal (voltage): ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V; 2 … 10 V
• Output signal (current): ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA
• Load impedance (voltage output): ≥ 1 kΩ
• Load impedance (current output): ≤ 600 Ω

Output – Digital

• Switching voltage (DO) (max.): Supply voltage (applied): −0.3 V
• Continuous current (DO) (max.): 100 mA (no internal restriction)
• Number of switching thresholds (DO): 1 or 2 (adjustable)
• Configurable rise/fall delay time (DO): 0 … 60 s (via software)

Output – Relay

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgNi + Au
• Switching voltage (max.): AC 250 V
• Limiting continuous current (relay; module assembly): 6 A (≤ 60 °C); 3 A (60 … 70 °C)
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Pull-in time (typ.): 8 ms
• Drop-out time (typ.): 4 ms
• Bounce time (typ.): 8 ms
• Number of switching thresholds (relay): 1 or 2 (adjustable)
• Configurable rise/fall delay time (relay): 0 … 60 s (via software)

Signal Processing

• Measurement method: True RMS measurement; Arithmetic mean value
• Limit frequency: 3.3 kHz
• Software filter (adjustable): Moving average value (filter level: 30)
• Step response (typ.): 60 ms (DC; for software filter 3/default setting); 250 ms (AC)

Measurement Error

• Transmission error (max.): ≤ 1 % (of the full scale value)
• Temperature coefficient: ≤ 0.01 %/K

Supply

• Power supply type: 24 VDC
• Nominal supply voltage US: DC 24 V
• Supply voltage range: ±30 %
• Power consumption at nominal supply voltage: ≤ 50 mA (+ IDO)

Test Voltage

• Test voltage (input/output/supply): AC 3 kV; 50 Hz; 1 min
• Test voltage (measurement circuit/relay output/supply/analog output): 3 kVAC; 50 … 60 Hz; 1 min
• Prüfspannung (Messkreis/Relaisausgang/Versorgung/Service-Schnittstelle ): 3 kVAC; 50 … 60 Hz; 1 min
• Test voltage (analog output/service interface): 2 kVAC; 50 … 60 Hz; 1 min

Insulation Parameters Per En/Ul 61010-1

• Line-to-neutral conductor voltage (AC) max.: 300 V
• Overvoltage category: II
• Pollution degree: 2
• Insulation type (measurement circuit/relay output, supply, analog output and service interface): Double insulation
• Insulation type (analog output/service interface): Basic insulation
• Insulation type (relay output/supply/analog output and service interface): Reinforced insulation

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: picoMAX® 5.0
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Feedthrough for measurement conductor: Ø 9.5 mm

Physical Data

• Width: 22.5 mm / 0.886 inch
• Height: 105 mm / 4.134 inch
• Depth from upper edge of DIN-rail: 107 mm / 4.213 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 1.644 MJ
• Weight: 102.939 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 10 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 90 °C

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
• EMC emission of interference: EN 61000-6-4; EN 61326-2-3; EN 50121-3-2
• Standards/Specifications: EN 61010-1 || EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821676997
• Customs tariff number Sales Organisation Germany: 85437090300
