Features

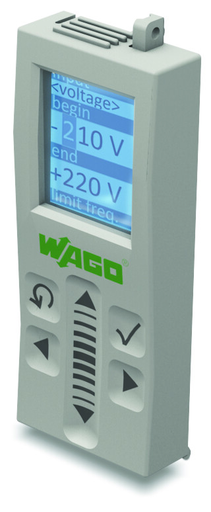

• Easy mounting on 2857 Series devices
• Automatic module detection
• Capacitive user interface with slider function
• Intuitive menu navigation
• Multicolor backlight for status indication
• Device configuration and process value visualization
• Easy copying of device configuration

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Operating Data

• Operating voltage: DC 3.3 V
• Power consumption: ≤ 60 mA

Physical Data

• Width: 22 mm / 0.866 inch
• Height: 13 mm / 0.512 inch
• Depth: 59 mm / 2.323 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.000 MJ
• Weight: 24.268 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 70 °C
• Surrounding air temperature (storage): -30 … 80 °C
• Relative humidity: 10 … 95 % (without condensation)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
• EMC emission of interference: EN 61000-6-4; EN 61326-2-3; EN 50121-3-2
• Standards/Specifications: EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821677017
• Customs tariff number Sales Organisation Germany: 90303370000
