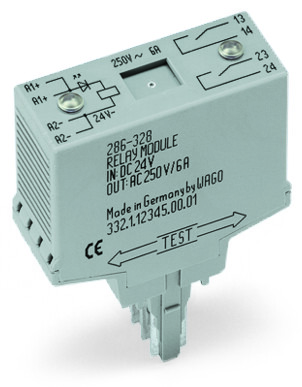

Specifications

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range: -30 … +25 %
• Nominal input current at UN: 20 mA
• Nennfrequenzbereich: (5030514)

Load Circuit

• Number of make/switch-on contacts: 2
• Contact material (relay): AgSnO2
• Limiting continuous current: 6 A
• Inrush current (resistive) (max.): (AC) 15 A / 1 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1500 VA
• Pull-in time (typ.): 10 ms
• Drop-out time (typ.): 4 ms
• Bounce time (typ.): 1 ms
• Nennfrequenzbereich: (5030623)

Signaling

• Status indicator: Red LED

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms
• Protection type: IP20

Physical Data

• Width: 20 mm / 0.787 inch
• Height from upper-edge of DIN-rail: 82.5 mm / 3.248 inch
• Depth: 52 mm / 2.047 inch

Mechanical Data

• Mounting type: Pluggable module for receptacle terminal blocks

Material Data

• Color: Gray
• Fire load: 7.619 MJ
• Weight: 34.900 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -25 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 60664-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143104739
• Customs tariff number Sales Organisation Germany: 85364900990
