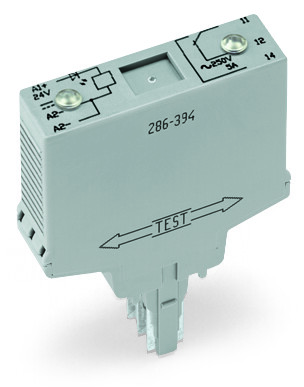

Specifications

Notes

• Note: To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range: -30 … +25 %
• Nominal input current at UN: 7.1 mA
• Nennfrequenzbereich: (5030514)

Load Circuit

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgNi + Au
• Limiting continuous current: 1 A
• Switching voltage (max.): AC 250 V
• Pull-in time (typ.): 9 ms
• Drop-out time (typ.): 3 ms
• Bounce time (typ.): 2 ms
• Nennfrequenzbereich: (5030623)

Safety And Protection

• Rated voltage: 300 V
• Overvoltage category: II
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3 kVrms
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (open contact): Functional insulation
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Protection type: IP20

Physical Data

• Width: 15 mm / 0.591 inch
• Height from upper-edge of DIN-rail: 82.5 mm / 3.248 inch
• Depth: 52 mm / 2.047 inch

Mechanical Data

• Mounting type: Pluggable module for receptacle terminal blocks

Material Data

• Color: Light gray
• Fire load: 0.323 MJ
• Weight: 26.090 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -25 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454496388
• Customs tariff number Sales Organisation Germany: 85364900990
