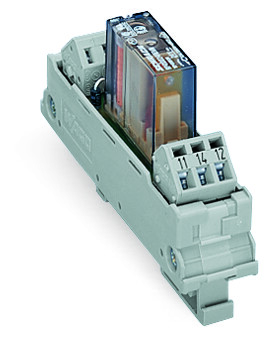

Specifications

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range: -15 … +20 %
• Nominal input current at UN: 51 mA
• Functions: Set (closed 11-14 contacts): A1 || Reset (closed 11-12 contacts): A2

Load Circuit

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgNi 90/10
• Limiting continuous current: 6 A
• Inrush current (resistive) (max.): (AC) 30 A / 4 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1500 VA
• Pull-in time (typ.): 10 ms
• Drop-out time (typ.): 10 ms
• Bounce time (typ.): 6 ms
• Electrical life (NO; resistive load; 23 °C): 10 x 103 switching operations

Safety And Protection

• Rated voltage: 300 V
• Overvoltage category: II
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 20.5 mm / 0.807 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 48 mm / 1.89 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.492 MJ
• Weight: 43.300 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 40 °C
• Surrounding air temperature (storage): -25 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 75 % (non-condensing)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454312336
• Customs tariff number Sales Organisation Germany: 85364900990
