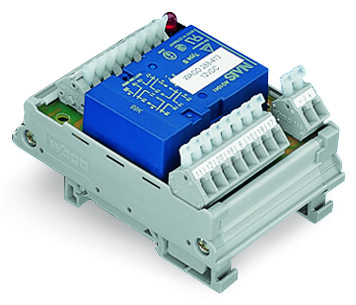

Specifications

Notes

• Note: If required, a ventilation hole can be made in the cover, reducing the protection type from IP67 to IP30.If an outer contact (20) should weld, then the forced operated inner contact (12) driven by the actuator remains open. The rotating armature remains free to move. The unaffected contact pairs can operate normally, (i. e. their function to make or break remains unaffected).If an inner contact should weld (12) then the movement of the rotating armature is blocked via the operator. Open contacts of all four contact pairs remain open. This arrangement corresponds to conventional, force-guided operation.

Control Circuit

• Nominal input voltage UN: DC 12 V
• Input voltage range: -15 … +20 %
• Nominal input current at UN: 41.6 mA

Load Circuit

• Number of break/switch-off contacts: 4
• Number of make/switch-on contacts: 4
• Contact material (relay): AgSnO2
• Limiting continuous current: 6 A
• Inrush current (resistive) (max.): (AC) 20 A
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1500 VA
• Recommended minimum load: 10 V / 10 mA
• Pull-in time (typ.): 18 ms
• Drop-out time (typ.): 21 ms
• Bounce time (typ.): 4 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 10 x 106 switching operations
• Mechanical force-guided operation: Type B

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 2.5 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 2 kVrms
• Dielectric strength, open contact (AC, 1 min): 1.3 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 63.5 mm / 2.5 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 40 mm / 1.575 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.854 MJ
• Weight: 108.700 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Processing temperature: -25 … +50 °C

Standards And Specifications

• Standards/Specifications: EN 60664-1 || EN 50205 || EN 61810-1 || ESTI (SEV): 09.1133 || UL 508: E120782 || TÜV: 968/EZ 116.02/09

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454192556
• Customs tariff number Sales Organisation Germany: 85364900990
