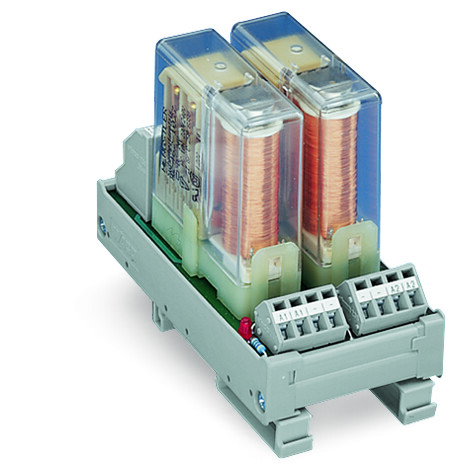

Specifications

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range: ±10 %
• Nominal input current at UN: 50 mA

Load Circuit

• Number of break/switch-off contacts: 1
• Number of make/switch-on contacts: 3
• Contact material (relay): AgCdO
• Limiting continuous current: 6 A
• Inrush current (resistive) (max.): (AC) 10 A
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1500 VA
• Recommended minimum load: 12 V / 300 mA
• Pull-in time (typ.): 23 ms
• Drop-out time (typ.): 20 ms
• Mechanical life: 10 x 106 switching operations

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 2.5 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 1.35 kVrms
• Dielectric strength, open contact (AC, 1 min): 1.35 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1.35 kVrms

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 57 mm / 2.244 inch
• Height: 107 mm / 4.213 inch
• Depth from upper edge of DIN-rail: 90 mm / 3.543 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 1.422 MJ
• Weight: 293.505 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -25 … 70 °C
• Processing temperature: -25 … +50 °C

Standards And Specifications

• Standards/Specifications: EN 60664-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454520793
• Customs tariff number Sales Organisation Germany: 85364900990
