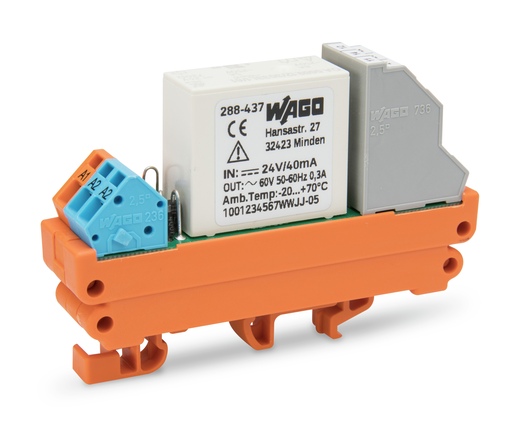

Specifications

Notes

• Note: 60 VDC switching voltages and 300 mA currents must not be exceeded for gold-plated basic relays. Higher switching power eventually evaporates the gold layer.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range: -15 … +10 %
• Nominal input current at UN: 36 mA

Load Circuit

• Number of changeover/switchover contacts: 2
• Contact material (relay): AgNi 10 + Au
• Limiting continuous current: 5 A
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1250 VA
• Recommended minimum load: 0.1 V / 1 mA / 1 mW
• Pull-in time (typ.): 15 ms
• Drop-out time (typ.): 12 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 50 x 106 switching operations

Safety And Protection

• Rated voltage: 250 V
• Overvoltage category: II
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3 kVrms
• Dielectric strength, open contact (AC, 1 min): 1.5 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 3 kVrms
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (load/load circuit): Functional insulation
• Insulation type (adjacent devices): Basic insulation
• Protection type: IP00

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 19 mm / 0.748 inch
• Height: 75 mm / 2.953 inch
• Depth from upper edge of DIN-rail: 38 mm / 1.496 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.286 MJ
• Weight: 44.200 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 %
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 50205

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454560133
• Customs tariff number Sales Organisation Germany: 85364900990
