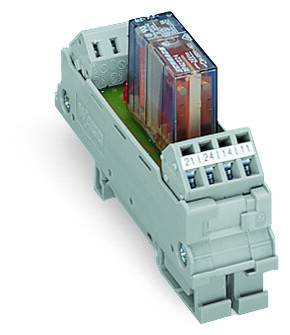

Specifications

Control Circuit

• Nominal input voltage UN: AC/DC 24 V
• Input voltage range: ±10 %
• Nominal input current at UN: 21.8 mA

Load Circuit

• Number of changeover/switchover contacts: 2
• Contact material (relay): AgNi 0.15
• Limiting continuous current: 6 A
• Inrush current (resistive) (max.): (AC) 14 A / 4 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1500 VA
• Pull-in time (typ.): 8 ms
• Drop-out time (typ.): 3 ms
• Bounce time (typ.): 2 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 20 x 106 switching operations

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 2.5 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 2 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 22.5 mm / 0.886 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 48 mm / 1.89 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.896 MJ
• Weight: 48.400 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 40 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Processing temperature: -25 … +50 °C

Standards And Specifications

• Standards/Specifications: EN 60664-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4045454413750
• Customs tariff number Sales Organisation Germany: 85364900990
