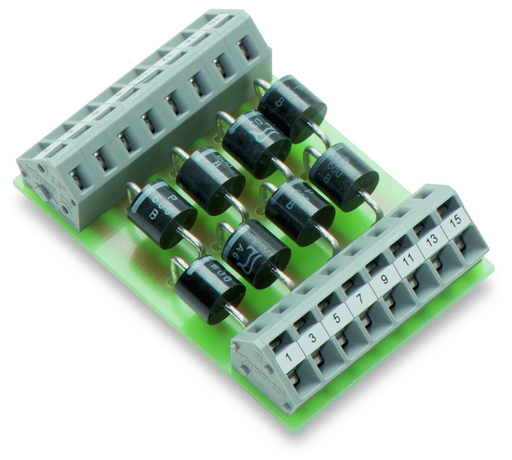

Specifications

Notes

• Note: Max. admissible current per the manufacter’s data sheet. With all diodes loaded, the continuous current must be reduced.

Electrical Data

• Operating voltage: ≤ AC/DC 100 V
• Peak reverse voltage: 100 V
• Rectified current for each diode (resistive): 6 A
• Forward voltage per diode: 1 V
• Forward current per diode (resistive): 6 A
• Leakage current: 5 µA

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2
• Protection type: IP00*
• Note on protection type: Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.

Connection Data

• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 236 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 47 mm / 1.85 inch
• Height from the surface: 31.5 mm / 1.24 inch
• Height from upper-edge of DIN-rail: 82.5 mm / 3.25 inch
• Depth: 65.5 mm / 2.579 inch

Mechanical Data

• Mounting type: Mounting on DIN-rail via DIN-rail adapter
• Housing design: PCB

Material Data

• Fire load: 0.000 MJ
• Weight: 18.954 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 40 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454569372
• Customs tariff number Sales Organisation Germany: 85369010000
