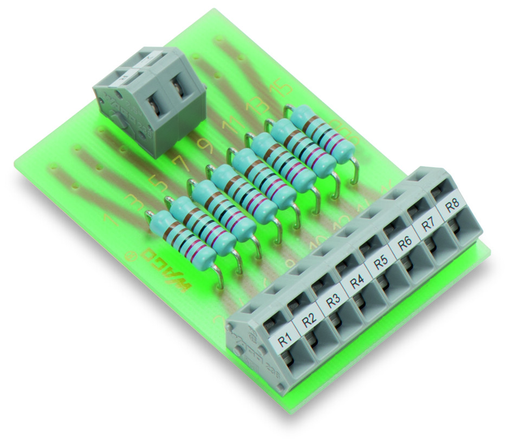

Specifications

Notes

• Note: Max. admissible capacity of a single resistor – with all resistors loaded, the max. admissible power dissipation must be reduced.Other resistors are available upon request!

Electrical Data

• Operating voltage: ≤ AC/DC 40 V
• Resistor: 2K2
• Tolerance: ±1%
• Resistor type/design: DIN 0414
• Temperature coefficient: 50 ppm (20 °C)
• Component (P70) power dissipation: 1 W

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV

Connection Data

• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 236 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 47 mm / 1.85 inch
• Height from the surface: 31.5 mm / 1.24 inch
• Depth: 65.5 mm / 2.579 inch

Mechanical Data

• Mounting type: Mounting on DIN-rail via DIN-rail adapter
• Housing design: PCB

Material Data

• Fire load: 0.000 MJ
• Weight: 18.915 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 40 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454192785
• Customs tariff number Sales Organisation Germany: 85369010000
