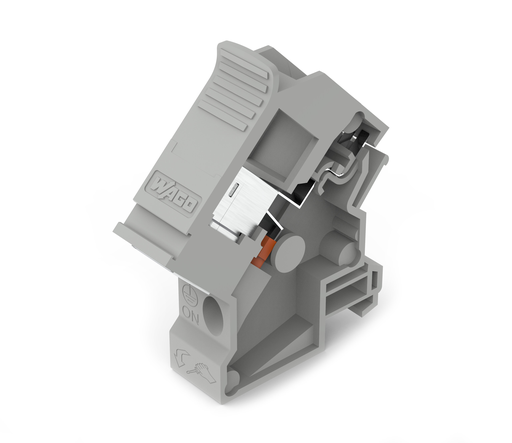

Specifications

Electrical Data

• Contact resistance (max.): 5 mΩ
• Specialty functions: With shield connection

Safety And Protection

• Protection type: IP20

Connection Data

• Pole No.: 8
• Connection type (1): System
• Pole number 1: 8
• Pluggable connectors: RJ-45 (shielded)
• Connection type 2: System
• Pole number 2: 8
• Connection technology 2: IDC
• Solid conductor 2: 0.4 … 0.65 mm² / 26 … 22 AWG
• Stranded conductor 2: 0.4 … 0.65 mm² / 26/7 … 22/7 AWG
• Strip length 2: 4.5 … 9.6 mm / 0.18 … 0.38 inch
• Mating cycles: 750
• Connection cable: Cat. 6A (min.)

Physical Data

• Width: 18 mm / 0.709 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 59 mm / 2.323 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Contact plating (connector): Au over Ni
• Contact material (connector): CuSn
• Material (plug-in module): Zinc die-cast
• Material (carrier rail adapter): PC-GF10
• Fire load: 0.000 MJ
• Weight: 39.000 g

Environmental Requirements

• Surrounding air temperature (operation): -10 … 60 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 95% (non-condensing)

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: PL
• GTIN: 4055144029895
• Customs tariff number Sales Organisation Germany: 85366990990
