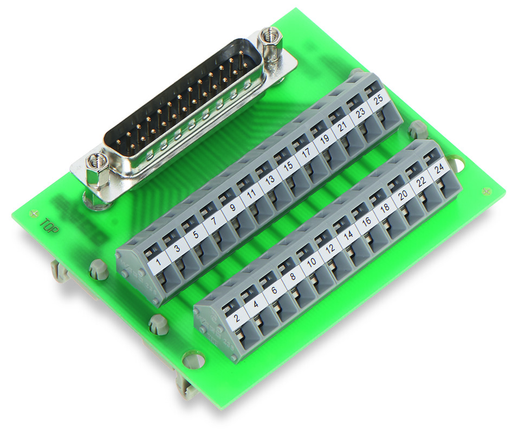

Specifications

Electrical Data

• Operating voltage: ≤30 VAC; ≤50 VDC
• Nominal current: 1 A
• Contact resistance (max.): 30 mΩ

Safety And Protection

• Rated voltage: 50 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2
• Protection type: IP00*
• Note on protection type: Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.

Connection Data

• Pole No.: 15
• Connection type (1): System
• Pluggable connectors: D-sub male connector
• For mating connector: With IDC
• Mating direction: Vertical
• Connection type 2: Field
• Pole number 2: 15
• Design 2: PCB terminal blocks (double-row)
• Connection technology 2: CAGE CLAMP®
• WAGO Connector 2: WAGO 236 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Performance level: 2 / 200 mating cycles
• Strain relief: UNC 4-40 stud bolt

Physical Data

• Width: 53.5 mm / 2.106 inch
• Height: 63.5 mm / 2.5 inch
• Depth from upper edge of DIN-rail: 19 mm / 0.748 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: PCB with mounting feet

Material Data

• Contact material (connector): Au over Ni
• Fire load: 0.054 MJ
• Weight: 25.948 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 85% (non-condensing)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454413521
• Customs tariff number Sales Organisation Germany: 85369010000
