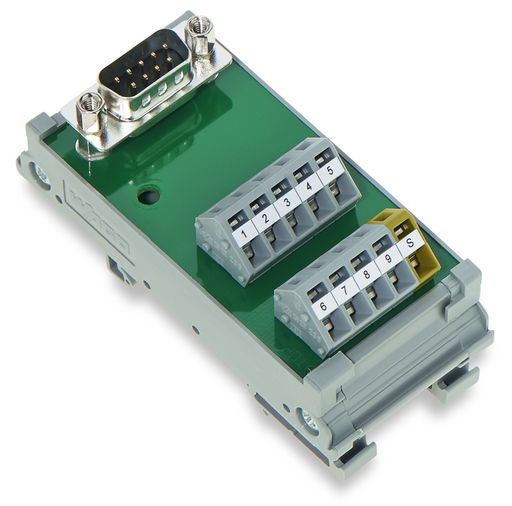

Features

Approvals

• Underwriters Laboratories Inc., UL, E175199 Vol.2 Sec.1, UL 508

Specifications

Electrical Data

• Operating voltage: ≤ AC/DC 125 V
• Nominal current: 2 A
• Contact resistance (max.): 30 mΩ
• Specialty functions: With shield connection

Safety And Protection

• Rated voltage: 125 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2
• Protection type: IP20

Connection Data

• Pole No.: 25
• Connection type (1): System
• Pluggable connectors: D-sub male connector
• For mating connector: With solder contact
• Mating direction: Vertical
• Connection type 2: Field
• Pole number 2: 26
• Design 2: PCB terminal blocks (double-row)
• Connection technology 2: CAGE CLAMP®
• WAGO Connector 2: WAGO 236 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Performance level: 2 / 200 mating cycles
• Strain relief: UNC 4-40 stud bolt

Physical Data

• Width: 71.5 mm / 2.815 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 34 mm / 1.339 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: Mounting carrier

Material Data

• Contact material (connector): Au over Ni
• Fire load: 0.927 MJ
• Weight: 78.400 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 85% (non-condensing)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454362188
• Customs tariff number Sales Organisation Germany: 85366990990
