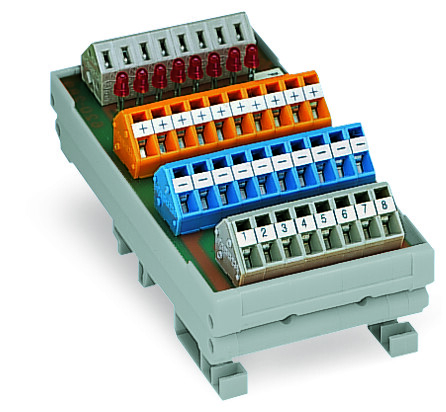

Specifications

Electrical Data

• Inputs/outputs: 8-channel digital input
• Circuit type: 3-wire connection || High-side switching
• Nominal operating voltage: DC 24 V
• Operating voltage range: ±10 %
• Current per connection (max.): 1 A
• Power consumption (status indication): 5.2 mA
• Total current: 8 A
• Status indicator: Red LED

Safety And Protection

• Rated voltage: 100 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2

Connection Data

• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 236 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 56 mm / 2.205 inch
• Height: 105 mm / 4.134 inch
• Depth from upper edge of DIN-rail: 34 mm / 1.339 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: Mounting carrier

Material Data

• Fire load: 0.965 MJ
• Weight: 83.610 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 85% (non-condensing)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454368357
• Customs tariff number Sales Organisation Germany: 85369010000
