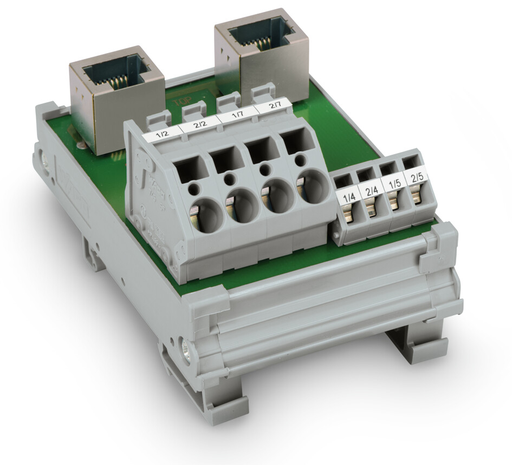

Specifications

Electrical Data

• Nominal current: 1.5 A
• Insulation resistance: ≥ 500 MΩ
• Specialty functions: With shield connection || With shield clamping saddle

Safety And Protection

• Dielectric strength, contact/contact (AC, 1 min): 0.5 kVrms

Connection Data

• Pole No.: 8
• Connection type (1): System
• Pluggable connectors: 2 x RJ-45 (shielded)
• Connection type 2: Clamping units 2, 7
• Pole number 2: 8
• Design 2: PCB terminal blocks
• Connection technology 2: CAGE CLAMP®
• WAGO Connector 2: WAGO 236 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
• Connection type (3): Clamping units 4, 5
• Pole number 3: 4
• Design 3: PCB terminal blocks
• Connection technology 3: CAGE CLAMP®
• WAGO Connector 3: WAGO 745 Series
• Solid conductor 3: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor (3): 0.2 … 6 mm² / 24 … 10 AWG
• Strip length 3: 11 … 12 mm / 0.43 … 0.47 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Mating cycles: 500
• Connection cable: Shielded RJ-45 cable assembly (recommended: UTP, STP)
• WAGO Shield Clamping Saddle: 27 mm wide; cable diameter up to 24 mm

Physical Data

• Width: 69 mm / 2.717 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 40 mm / 1.575 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: Mounting carrier

Material Data

• Fire load: 0.788 MJ
• Weight: 106.900 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 85 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821001218
• Customs tariff number Sales Organisation Germany: 85366990990
