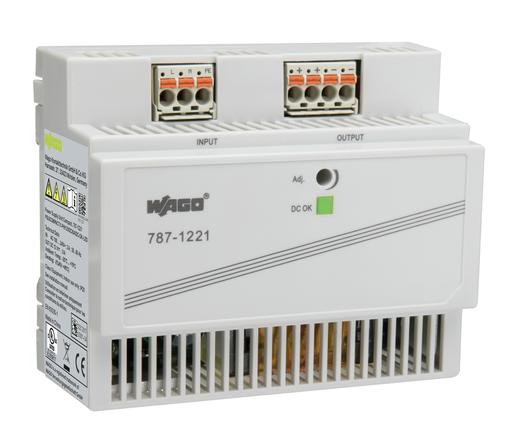

Features

• Stepped profile for installation in standard distribution boards
• Pluggable picoMAX® Connection Technology (tool-free)
• Suitable for both parallel and series operation
• Electrically isolated output voltage (SELV) per EN 60335-1; PELV per EN 60204

Approvals

• Underwriters Laboratories Inc., UL, E255817, UL 508

Specifications

Input

• Phases: 1
• Nominal input voltage Ui nom: 1 x AC 100 … 240 V; DC 140 … 340 V
• Input voltage range: AC 90 … 264 V; DC 125 … 375 V
• Input voltage derating: -2 %/V (< 100 VAC); -1.33 %/V (< 140 VDC)
• Nominal mains frequency range: 47 … 63 Hz; 0 Hz
• Input current Ii: ≤ 1.6 A (100 VAC; 8 ADC)
• Discharge current: ≤ 0.25 mA
• Inrush current: ≤ 30 A (NTC)
• Power factor: ≥ 0.5
• Power factor correction (PFC): Passive
• Mains failure hold-up time: ≥ 50 ms (230 VAC)

Output

• Nominal output voltage Uo nom: DC 12 V (SELV)
• Output voltage range: DC 10 … 14 V (adjustable)
• Default setting: DC 12 V
• Nominal output current Io nom: 8 A
• Nominal output power: 96 W
• Control deviation: ≤ 1 %
• Deviation, dynamic load change 10 … 90 %: ≤ 1 %
• Residual ripple: ≤ 100 mV (Peak-to-peak)
• Overload behavior: Constant power (in overload range: 1.05 … 1.35 x Io nom); Shutdown and automatic restart in the event of a short circuit or permanent overload

Signaling And Communication

• Signaling: 1 x LED DC OK (green)
• Operation status indicator: Green LED (Uo)

Efficiency/Power Losses

• Power loss Pl: ≤ 0.7 W (230 VAC; No load)
• Power loss (max.) Pl (max.): 11.8 W (100 VAC / 12 VDC; 8 A)
• Efficiency (typ.): 91.5 % (230 VAC; Nominal load); 90 % (110 VAC; Nominal load)

Circuit Protection

• Internal fuse: T 3.15 A / 250 VAC
• Required backup fusing: An external DC fuse is required for the DC input voltage.
• Recommended backup fusing: Circuit breaker: 6 A, 10 A or higher; Tripping characteristic: B

Safety And Protection

• Isolation voltage (Pri.-Sec.): DC 4.242 kV
• Isolation voltage (Pri.-GND): DC 2.12 kV
• Protection class: I
• Protection type: IP20 (per EN 60529)
• Resistance to reverse feed: ≤ DC 16 V
• Overvoltage category: II
• Pollution degree: 2
• Transient suppression (primary): Varistor
• Overvoltage protection; secondary: ≤ 20 VDC (in the event of a fault)
• Short-circuit-protected: Yes
• Open-circuit-proof: Yes
• Parallel operation: Yes
• Series operation: Yes, for 2 devices of the same type
• MTBF: > 1,300,000 h (at 25 C; per IEC 61709); > 250,000 h (at 40 C; per IEC 61709)

Connection Data

• Connection type (1): Input/output
• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: picoMAX® 5.0, WAGO 2092 Series
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 108 mm / 4.252 inch
• Height: 90 mm / 3.543 inch
• Depth: 56 mm / 2.205 inch
• Depth from upper edge of DIN-rail: 52.5 mm / 2.067 inch

Mechanical Data

• Mounting type: DIN-35 rail || Screw mount (back)

Material Data

• Flammability class per UL94: V0
• Fire load: 0.000 MJ
• Weight: 422.800 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Relative humidity: 20 … 90 % (no condensation permissible)
• Derating: -2 %/K (> 45 °C)

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 61204-3 || EN 60335-1 || UL 508

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143863360
• Customs tariff number Sales Organisation Germany: 85044082900
