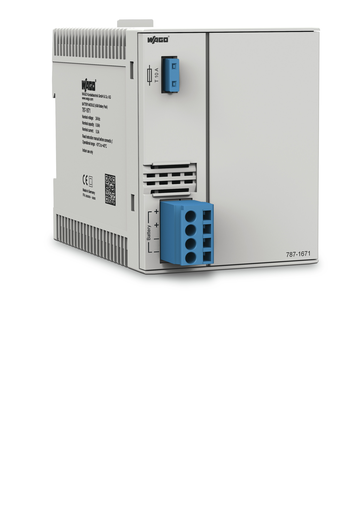

Features

• Lead-acid, absorbed glass mat (AGM) battery module for uninterruptible power supply (UPS)
• Can be connected to both 787-870/875 UPS Charger/Controller and 787-1675 Power Supply with integrated UPS charger and controller
• Parallel operation provides higher buffer time
• Built-in temperature sensor
• DIN-35-rail mountable
• Battery control (from manufacturing no. 216570) detects both battery life and battery type

Specifications

Notes

• Note: For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller.

Input

• Nominal input voltage Ui nom: DC 24 V

Output

• Nominal output voltage Uo nom: DC 24 V
• Nominal output current Io nom: 5 A

Energy Storage System

• Battery capacity: 0.8 Ah
• Charging current: 0.2 A (recommended)
• End-of-charge voltage: DC 27 V (25 °C)

Signaling And Communication

• Signaling: Battery control (C+; C-)

Circuit Protection

• Internal fuse: T 10 A / 250 VAC

Safety And Protection

• Protection class: III
• Protection type: IP20 (per EN 60529)
• Pollution degree: 2
• Series operation: No
• MTBF: > 500,000 h (per IEC 61709)
• Service life (typ.): 5 / 4 / 2 a (20 / 30 / 40 °C)

Connection Data

• Connection type (1): Input/output/battery control
• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 721 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Line length (max.): 3 m

Physical Data

• Width: 72 mm / 2.835 inch
• Height: 97 mm / 3.819 inch
• Depth from upper edge of DIN-rail: 124 mm / 4.882 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 1000.000 g

Environmental Requirements

• Surrounding air temperature (operation): -15 … 40 °C (−20 … +40 °C (during discharge))
• Surrounding air temperature (storage): -20 … 40 °C
• Relative humidity: 5 … 80 % (no condensation permissible)

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 61010-1 || EN 61010-2-201
• Standards/Specifications (pending): UL 508

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143535724
• Customs tariff number Sales Organisation Germany: 85072080900
