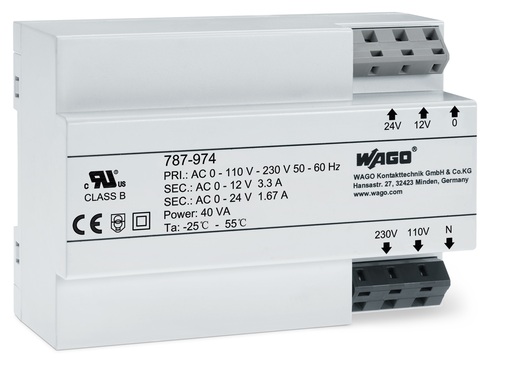

Features

• Maintenance-free, DIN-rail-mount safety transformer for 12/24 VAC
• Center tap-off modules provide variable input/output voltage.
• Enables brief performance peaks
• Peak output power of 45 VA for 1 min/h

Approvals

• Underwriters Laboratories Inc., UL, E488057, UL 5085-1/-2

Specifications

Input

• Phases: 1
• Nominal input voltage Ui nom: 1 x AC 115 V; AC 230 V
• Input voltage range: AC 0 … 230 V
• Nominal mains frequency range: 50 … 60 Hz

Output

• Nominal output voltage Uo nom: AC 12 / 24 V
• Nominal output current Io nom: 3.3 A (115 VAC); 1.67 A (230 VAC)
• Load regulation: ≤ 5 %
• Overload behavior: Safety fuse in the primary circuit

Efficiency/Power Losses

• Power loss Pl: ≤ 0.6 W

Circuit Protection

• Internal fuse: T 1.25 A / 250 VAC; T 0.63 A / 250 VAC

Safety And Protection

• Isolation voltage (AC): AC 4.2 kV
• Protection class: II
• Protection type: IP20 (per EN 60529)
• Overvoltage category: III
• Pollution degree: 2
• Short-circuit-protected: Yes
• Open-circuit-proof: Yes
• Parallel operation: No
• Series operation: Yes (with identical power supply)

Connection Data

• Connection type (1): Input/output
• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 236 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 126 mm / 4.961 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 54 mm / 2.126 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 1000.000 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Relative humidity: ≤ 90%

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: UL 5085 || EN 61558-2-6

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143487382
• Customs tariff number Sales Organisation Germany: 85043129900
