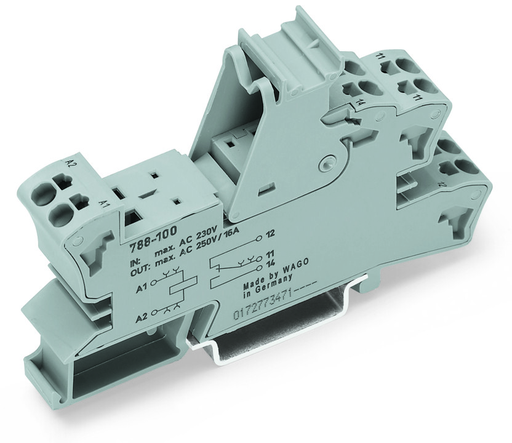

Specifications

Notes

• Note: Bei den angegebenen technischen Daten handelt es sich um Maximalwerte. Diese können durch das verwendete Zubehör eingeschränkt werden.

Control Circuit

• Nominal input voltage UN: AC/DC 230 V
• Input voltage range: AC/DC 0 … 250 V

Load Circuit

• Number of changeover/switchover contacts: 1
• Limiting continuous current: 16 A
• Switching voltage (max.): AC 300 V

Safety And Protection

• Rated voltage: 300 V
• Overvoltage category: II
• Pollution degree: 3
• Dielectric strength, control/load circuit (AC, 1 min): 6 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the the same type): Basic insulation
• Protection type: IP20

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 15 mm / 0.591 inch
• Height: 86 mm / 3.386 inch
• Depth from upper edge of DIN-rail: 73 mm / 2.874 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.662 MJ
• Weight: 32.000 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454931032
• Customs tariff number Sales Organisation Germany: 85366990990
