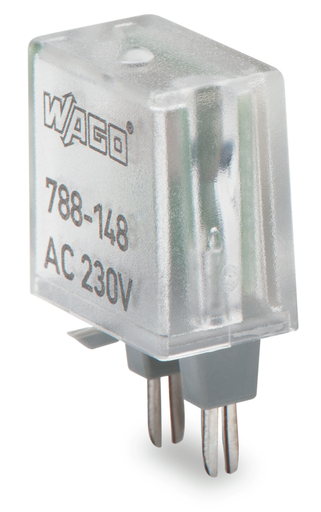

Specifications

Notes

• Note: To guarantee safe operation, residual voltages (due to the cable capacitance of long connection lines or leakage currents of semi-conductor switches and their protective circuits) must be lower than the release voltage of the relays.For DC relays, the release voltage is specified with ≤ 5% of the nominal voltage; for AC relays, it is 15% of the nominal voltage (per VDE 0435).The relay may not reset if a high residual voltage exists. Depending on the reason for the residual voltage, changing the cable routing or a parallel connection of an RC element could remedy this situation.

Operating Data

• Nominal operating voltage: AC 230 V
• Operating voltage: AC 0 … 230 V
• Power consumption at UN: 7.2 mA (230 VAC; 50 Hz); 3.6 mA (115 VAC; 50 Hz)
• Nominal mains frequency range: 50 … 60 Hz

Module Characteristics

• Resistor: 470 Ω
• Capacitance: 100 nF

Physical Data

• Width: 15 mm / 0.591 inch
• Height from the surface: 15.7 mm / 0.618 inch
• Depth: 10 mm / 0.394 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.027 MJ
• Weight: 1.523 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 70 °C

Standards And Specifications

• Standards/Specifications: EN 60664-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821583547
• Customs tariff number Sales Organisation Germany: 85366990990
