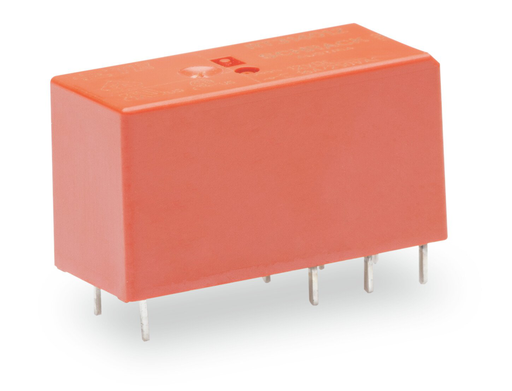

Specifications

Control Circuit

• Nominal input voltage UN: DC 60 V

Load Circuit

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgNi 90/10
• Limiting continuous current: 16 A
• Inrush current (resistive) (max.): (AC) 30 A / 4 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 4000 VA; DC (see load limit curve)
• Switching capacity: AC-15: 6 A / AC 250 V; DC-13: 2 A / DC 24 V
• Recommended minimum load: 12 V / 10 mA
• Pull-in time (typ.): 8 ms
• Drop-out time (typ.): 6 ms
• Bounce time (typ.): 6 ms
• Electrical life (NO; resistive load; 23 °C): 30 x 103 switching operations
• Mechanical life: 30 x 106 switching operations
• Switching frequency with/without load (max.): 6 min-1 / 1200 min-1

Safety And Protection

• Dielectric strength, control/load circuit (AC, 1 min): 5 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms

Physical Data

• Width: 12.7 mm / 0.5 inch
• Height from the surface: 15.7 mm / 0.618 inch
• Depth: 29 mm / 1.142 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.000 MJ
• Weight: 14.000 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 85 °C
• Surrounding air temperature (storage): -40 … 85 °C

Standards And Specifications

• Standards/Specifications: EN 61810-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821867807
• Customs tariff number Sales Organisation Germany: 85364900990
