WAGO 788-172

788-172 WAGO 788-172

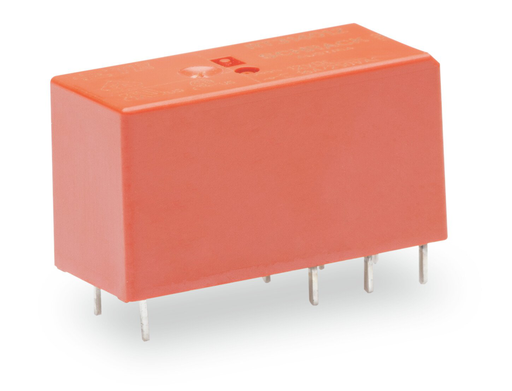

WAGO 788-172
Part # 788-172
Manufacturer WAGO
Condition New
Price: $ 9.03

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
RELAY 24VAC 2U RT
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Pluggable miniature switching relays AC 24 V 15 mm high

Specifications

Control Circuit

  • Nominal input voltage UN: AC 24 V

Load Circuit

  • Number of changeover/switchover contacts: 2
  • Contact material (relay): AgNi 90/10
  • Limiting continuous current: 8 A
  • Inrush current (resistive) (max.): (AC) 15 A / 4 s
  • Switching voltage (max.): AC 250 V
  • Switching power (resistive) (max.): AC 2000 VA; DC (see load limit curve)
  • Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
  • Recommended minimum load: 12 V / 10 mA
  • Pull-in time (typ.): 8 ms
  • Drop-out time (typ.): 6 ms
  • Bounce time (typ.): 10 ms
  • Electrical life (NO; resistive load; 23 °C): 10 x 103 switching operations
  • Mechanical life: 30 x 106 switching operations
  • Switching frequency with/without load (max.): 6 min-1 / 1200 min-1

Safety And Protection

  • Dielectric strength, control/load circuit (AC, 1 min): 5 kVrms
  • Dielectric strength, open contact (AC, 1 min): 1 kVrms
  • Dielectric strength, load/load circuit (AC, 1 min): 2.5 kVrms

Physical Data

  • Width: 12.7 mm / 0.5 inch
  • Height from the surface: 15.7 mm / 0.618 inch
  • Depth: 29 mm / 1.142 inch

Mechanical Data

  • Mounting type: Pluggable module

Material Data

  • Fire load: 0.225 MJ
  • Weight: 12.700 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C

Standards And Specifications

  • Standards/Specifications: EN 61810-1

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454620967
  • Customs tariff number Sales Organisation Germany: 85364900990
: *
: *
: *
