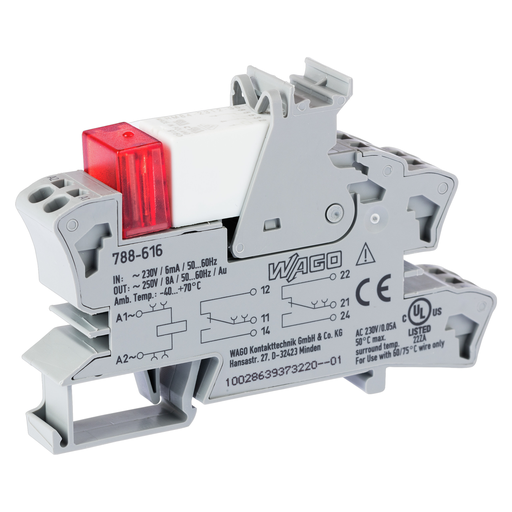

Features

Approvals

• UL International Netherlands B.V., UL, E175199 Sec.6, UL 508
• Nippon Kaiji Kyokai, NK, TA17255M
• Polski Rejestr Statków, PRS, TE/2186/880590/18
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1

Specifications

Notes

• Safety information 1: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
• Note: Reinforced insulation between coil and contactsTo prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Control Circuit

• Nominal input voltage UN: AC 230 V
• Input voltage range: ±10 %
• Nominal input current at UN: 5 mA

Load Circuit

• Number of changeover/switchover contacts: 2
• Contact material (relay): AgNi + Au
• Limiting continuous current: 8 A
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 2000 VA; DC (see load limit curve)
• Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
• Recommended minimum load: 5 V / 2 mA / 50 mW
• Pull-in time (typ.): 7 ms
• Drop-out time (typ.): 3 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 30 x 106 switching operations

Signaling

• Status indicator: Red LED

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 3
• Dielectric strength, control/load circuit (AC, 1 min): 5 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 2.5 kVrms
• Safety information 1: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
• Protection type: IP20

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 15 mm / 0.591 inch
• Height: 86 mm / 3.386 inch
• Depth from upper edge of DIN-rail: 54 mm / 2.126 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.836 MJ
• Weight: 45.547 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 70 °C
• Surrounding air (operating) temperature for UL: -40 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 61810-1 || EN 61373 || UL 508

Basic Relay

• WAGO Basic Relay: 788-181

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454484804
• Customs tariff number Sales Organisation Germany: 85364900990
