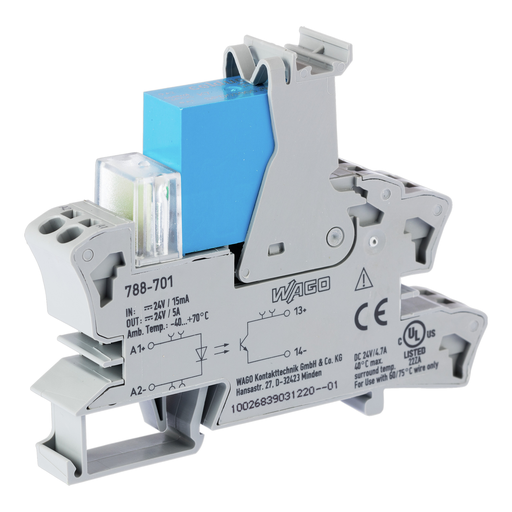

Features

Approvals

• UL International Netherlands B.V., UL, E175199 Sec.6, UL 508

Specifications

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range (low level): DC 0 … 2.5 V
• Input voltage range (high level): DC 15 … 30 V
• Nominal input current at UN: 9.3 mA

Load Circuit

• Circuit type: 2-wire connection
• Limiting continuous current: 5 A
• Nominal output voltage: DC 24 V
• Output voltage range: DC 0 … 30 V
• Voltage drop at output (max.): ≤ DC 0.3 V
• Turn-on time: ≤ 50 µs
• Turn-off time: ≤ 600 µs
• Switching frequency: ≤ 100 Hz

Signaling

• Status indicator: Red LED

Safety And Protection

• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 2.5 kVrms
• Protection type: IP20

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 15 mm / 0.591 inch
• Height from upper-edge of DIN-rail: 64 mm / 2.52 inch
• Depth: 86 mm / 3.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.691 MJ
• Weight: 47.000 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 70 °C
• Surrounding air (operating) temperature for UL: -40 … 40 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C

Standards And Specifications

• Standards/Specifications: EN 61000-6-2 || EN 61000-6-3 || EN 61373 || EN 61010-2-201 || UL 508 (max. 40 °C/4.7 A)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454743871
• Customs tariff number Sales Organisation Germany: 85365005000
