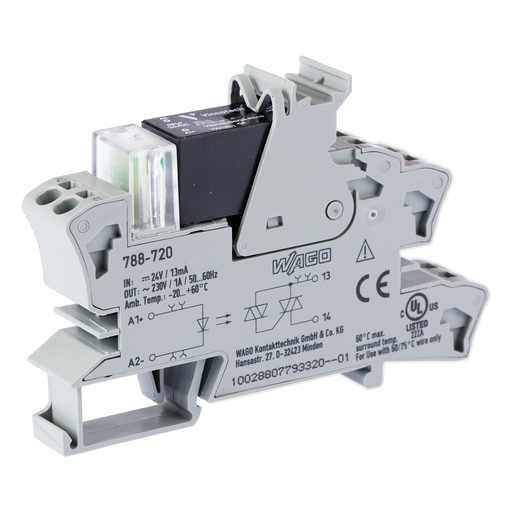

Features

Approvals

• UL International Netherlands B.V., UL, E175199 Sec.6, UL 508

Specifications

Notes

• Note: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range (low level): DC 0 … 4 V
• Input voltage range (high level): DC 18 … 30 V
• Nominal input current at UN: 7 mA

Load Circuit

• Circuit type: 2-wire connection || Zero-voltage switching
• Limiting continuous current: 1 A
• Nominal output voltage: AC 230 V
• Output voltage range: AC 24 … 240 V
• Voltage drop at output (max.): ≤ AC 1.1 V
• Turn-on time: ≤ 10 ms
• Turn-off time: ≤ 10 ms
• Switching frequency: 50 Hz / 60 Hz

Signaling

• Status indicator: Red LED

Safety And Protection

• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3.75 kVrms
• Protection type: IP20

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 15 mm / 0.591 inch
• Height from upper-edge of DIN-rail: 54 mm / 2.126 inch
• Depth: 86 mm / 3.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.682 MJ
• Weight: 41.252 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -20 … 60 °C
• Surrounding air (operating) temperature for UL: -40 … 60 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C

Standards And Specifications

• Standards/Specifications: EN 61000-6-2 || EN 61000-6-3 || EN 61373 || EN 61010-2-201 || UL 508 (max. 40 °C/2.5 A)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454743888
• Customs tariff number Sales Organisation Germany: 85365005000
