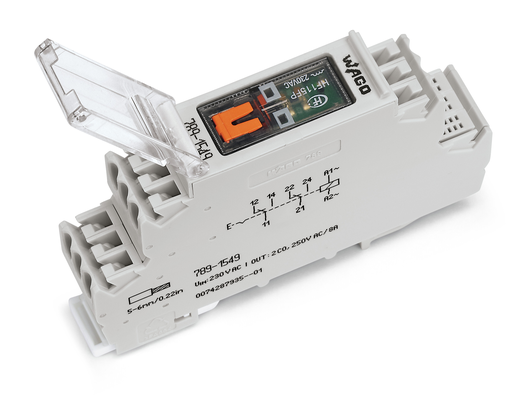

Specifications

Notes

• Note: To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Control Circuit

• Nominal input voltage UN: AC 230 V
• Input voltage range: ±10 %
• Nominal input current at UN: 3.5 mA

Load Circuit

• Number of changeover/switchover contacts: 2
• Contact material (relay): AgNi
• Limiting continuous current: 8 A
• Inrush current (resistive) (max.): (AC) 16 A / 0.02 s; (AC) 12 A / 4 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 2000 VA; DC (see load limit curve)
• Recommended minimum load: 12 V / 10 mA
• Pull-in time (typ.): 15 ms
• Drop-out time (typ.): 8 ms
• Bounce time (typ.): 7 ms
• Mechanical life: 5 x 106 switching operations

Signaling

• Status indicator: Red LED

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3.5 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms
• Protection type: IP20

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 17.5 mm / 0.689 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 2.925 MJ
• Weight: 59.527 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C

Standards And Specifications

• Standards/Specifications: EN 60664-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821386797
• Customs tariff number Sales Organisation Germany: 85364900990
