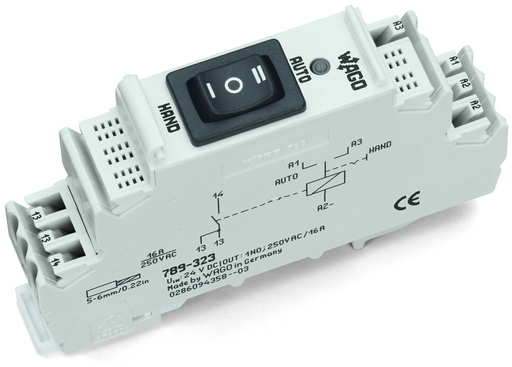

Specifications

Notes

• Note: To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range: -15 … +20 %
• Nominal input current at UN: 19 mA
• Power loss (max.) Pl (max.): 0.7 W

Load Circuit

• Number of make/switch-on contacts: 1
• Contact material (relay): AgSnO2
• Limiting continuous current: 16 A
• Inrush current (resistive) (max.): (AC) 120 A / 0.05 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 4000 VA
• Recommended minimum load: 12 V / 10 mA
• Pull-in time (typ.): 15 ms
• Drop-out time (typ.): 5 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 10 x 106 switching operations

Signaling

• Status indicator: Red LED

Safety And Protection

• Rated voltage: 300 V
• Overvoltage category: III
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (open contact): Functional insulation
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Protection type: IP20

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 17.5 mm / 0.689 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 5.209 MJ
• Weight: 54.200 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -20 … 40 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 30 K)
• Relative humidity: ≤ 75% (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454550608
• Customs tariff number Sales Organisation Germany: 85364900990
