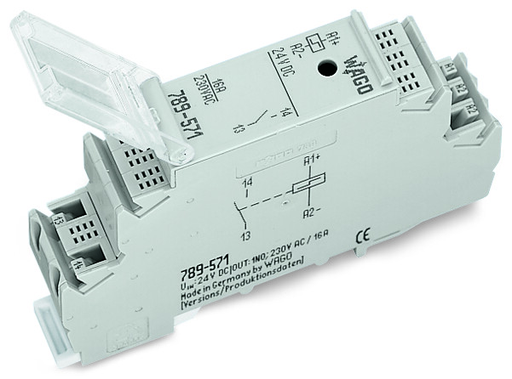

Specifications

Control Circuit

• Nominal input voltage UN: AC 230 V
• Input voltage range: -15 … +10 %
• Nominal input current at UN: 10 mA
• Coil control: Pulse mode
• Minimum pulse length (control input): 40 ms
• Minimum break time: 180 ms

Load Circuit

• Number of make/switch-on contacts: 1
• Contact material (relay): AgSnO2
• Limiting continuous current: 16 A
• Inrush current (resistive) (max.): (AC) 50 A / 0.02 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 4000 VA
• Recommended minimum load: 10 V / 10 mA
• Electrical life (NO; resistive load; 23 °C): 50 x 103 switching operations
• Mechanical life: 100 x 103 switching operations
• Switching frequency with/without load (max.): 6 min-1 / 240 min-1
• Circuit protection: Circuit breaker: 16 A (max.); Tripping characteristic: B

Signaling

• Status indicator: Red LED

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
• Protection type: IP20

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 17.5 mm / 0.689 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.742 MJ
• Weight: 59.400 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 40 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Processing temperature: -25 … +50 °C

Standards And Specifications

• Standards/Specifications: EN 60664-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332790222
• Customs tariff number Sales Organisation Germany: 85364900990
