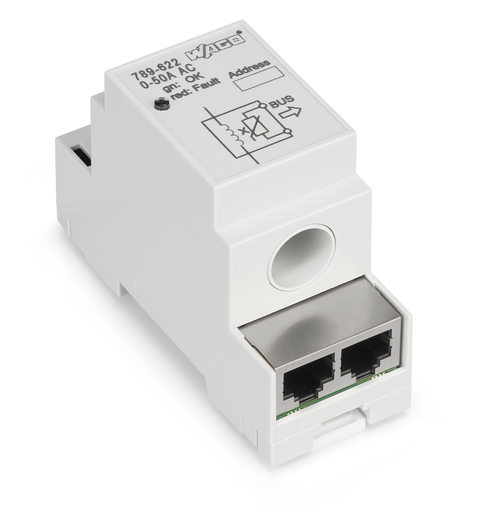

Specifications

Input

• Input signal type: Current
• Input signal (current): AC 0 … 50 A
• Resolution [bit]: 14 bits

Output – Modbus

• Number of devices (max.): 32
• Pluggable connectors: RJ-45
• Bus length (max.): 1200 m
• Terminating resistor: 150 Ω (can be activated via DIP switch 1)

Communication

• Communication: Modbus® RTU
• Interface: RS-485
• Transmission channels: Half duplex; 8-bit data; 1 stop bit
• Number of devices (max.): 32
• Bus length (max.): ≤ 1200 m
• Baud rate: 19.2 kBd
• Parity: Even
• Terminating resistor: 150 Ω (can be activated via DIP switch 1)

Measurement Error

• Transmission error (typ.): 1 % (typ.); Max. 3 % of upper-range value (at room temperature)
• Temperature coefficient: ≤ 0.01 %/K

Supply

• Nominal supply voltage US: DC 24 V
• Power consumption at nominal supply voltage: ≤ 8 mA

Safety And Protection

• Protection type: IP20

Connection Data

• Feedthrough for measurement conductor: 15 mm Ø
• Pluggable connectors: RJ-45

Physical Data

• Width: 35 mm / 1.378 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 77.222 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2
• EMC emission of interference: EN 61000-6-4
• Standards/Specifications: DIN EN 50178

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821374138
• Customs tariff number Sales Organisation Germany: 85437090300
