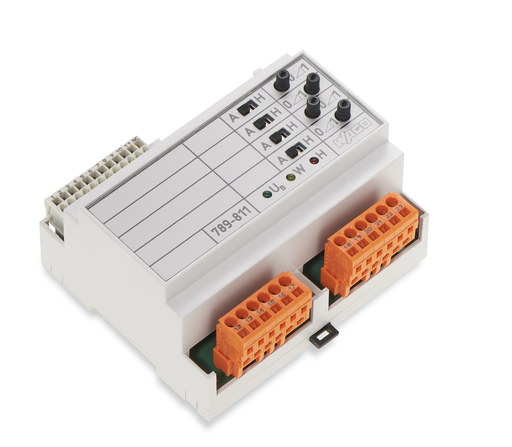

Specifications

Electrical Data

• Nominal operating voltage: DC 24 V
• Operating voltage range: ±20 %
• Inputs: No. 1 / 10: 24 V; power supply || No. 2: GND || No. 3 / 4 / 5 / 6: AI-0 … 3; Input 0 … 3; 0 … 10 V / 20 mA (max.) || No.11: WD-IN; Watchdog input; 24 V / 20 mA (max.)
• Outputs: No. 7: H-C; Manual operation; “closed” || No. 8: H-CM; Manual operation; “common” || No. 9: H-O; Manual operation; “open” || No. 12 / 15 / 18 / 21: DO-0 … 3-NC; Channel 0 … 3; Break contact; 250 VAC / 30 VDC; 8 A || No. 13 / 16 / 19 / 22: DO-0 … 3-CM; Channel 0 … 3; Common || No. 14 / 17 / 20 / 23: DO-0 … 3-NO; Channel 0 … 3; Make contact; 250 VAC / 30 VDC; 8 A

Connection Data

• Connection type (1): Input
• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 734 Series
• Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Strip length: 7 mm / 0.28 inch
• Connection type 2: Output
• Connection technology 2: CAGE CLAMP®
• WAGO Connector 2: WAGO 231 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 106 mm / 4.173 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 58 mm / 2.283 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: DIN-rail-mount enclosure

Material Data

• Fire load: 0.000 MJ
• Weight: 199.500 g

Environmental Requirements

• Surrounding air temperature (operation): 0 … 50 °C
• Surrounding air temperature (storage): -25 … 70 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821233800
• Customs tariff number Sales Organisation Germany: 85389091890
