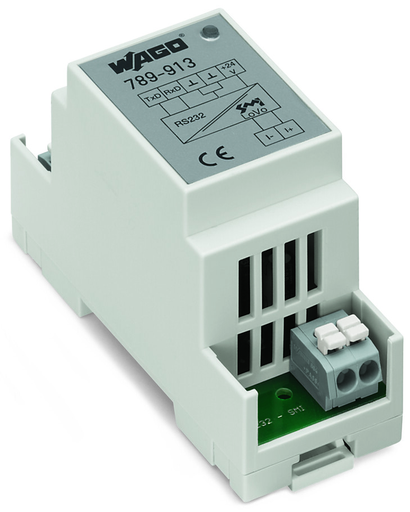

Specifications

Electrical Data

• Nominal operating voltage: DC 24 V
• Operating voltage range: ±10 %
• Power consumption at nominal supply voltage: ≤ 55 mA (inside)
• Number of SMI LoVo channels: 1
• Number of drives per channel: 16
• Status indicator: Green LED
• Interface: RS-232 (interface input)

Safety And Protection

• Protection type: IP20

Connection Data

• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 804 Series
• Solid conductor: 0.5 … 2.5 mm² / 20 … 12 AWG
• Fine-stranded conductor: 0.5 … 2.5 mm² / 20 … 12 AWG
• Strip length: 10 … 11 mm / 0.39 … 0.43 inch
• Line length (max.): 350 m (SMI bus; ≤ 3 m for data and power supply cable, RS-232)

Physical Data

• Width: 35 mm / 1.378 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Mounting position: Any
• Housing design: DIN-rail-mount enclosure

Material Data

• Fire load: 0.000 MJ
• Weight: 80.000 g

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C

Standards And Specifications

• Standards/Specifications: EN 50090-2-2

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821101819
• Customs tariff number Sales Organisation Germany: 85389099990
