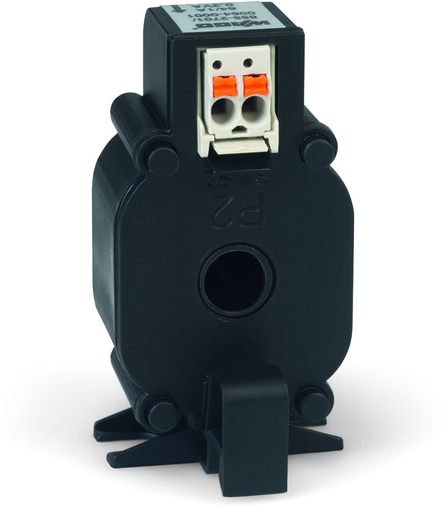

Features

• All-new design with picoMAX® connection technology
• Ready for space-restricted applications
• Simple assembly permits 17.5 mm phase spacing, allowing perfect adjustment to any circuit breaker.
• Easily mount on DIN-rail or panels via DIN-rail adapter
• Convert current from 64 A or 35 A to 1 A
• Accuracy class: 1

Approvals

• Underwriters Laboratories Inc., UL, E356480

Specifications

Input – Current Transformer

• Primary rated current: 64 A
• Rated continuous thermal current Icth: 100 %
• Rated short-time thermal current Ith: 60 x IN / 1 s
• Rated surge current Idyn: 2.5 x Ith
• Rated frequency: 50 … 60 Hz

Output – Current Transformer

• Secondary rated current: 1 A
• Rated power Sr: 0.2 VA

Measurement Error

• Accuracy class: 1

Test Voltage

• Test voltage: AC 3 kV; 50 Hz; 1 min

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: picoMAX® 3.5, 2091-1122
• Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Feedthrough for measurement conductor: Ø 7.5 mm

Physical Data

• Width: 27 mm / 1.063 inch
• Height: 46 mm / 1.811 inch
• Depth: 23 mm / 0.906 inch

Mechanical Data

• Mounting type: Closed current transformer || Mounting on DIN-rail via DIN-rail adapter || Mounting on round cable

Material Data

• Insulation class: E
• Flammability class per UL94: V2
• Housing material: PA 66
• Fire load: 0.000 MJ
• Weight: 44.000 g

Environmental Requirements

• Surrounding air temperature (operation): -10 … 55 °C
• Surrounding air temperature (storage): -20 … 70 °C
• Relative humidity: 5 … 85 % (without condensation)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 61869-1 || EN 61869-2 || UL

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: NL
• GTIN: 4050821864189
• Customs tariff number Sales Organisation Germany: 85043129900
