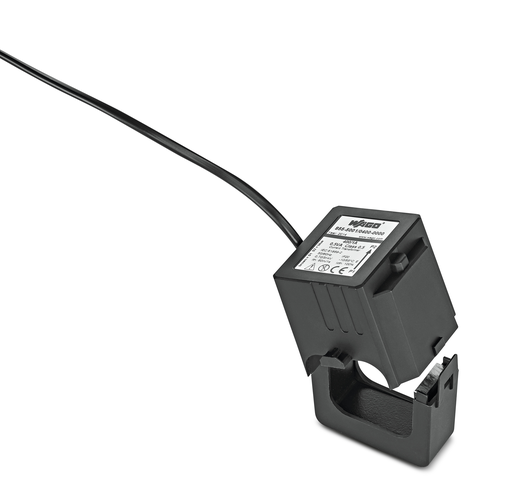

Features

• Current ratios from 1000 A (primary side) and 1 A (secondary side)
• No measuring cable interruption
• Ideal for use in very confined spaces
• Rapid mounting
• For use around insulated cables up to 42 mm diameter
• Compact and hinged
• Color-coded connecting cable 5 m

Specifications

Input – Current Transformer

• Primary rated current: 1000 A
• Rated continuous thermal current Icth: 100 %
• Rated short-time thermal current Ith: 60 x IN / 1 s
• Rated surge current Idyn: 2.5 x Ith
• Rated frequency: 50 … 60 Hz

Output – Current Transformer

• Secondary rated current: 1 A
• Rated power Sr: 0.5 VA

Measurement Error

• Accuracy class: 0.5

Test Voltage

• Test voltage: AC 3 kV; 50 Hz; 1 min

Connection Data

• Feedthrough for measurement conductor: 2 x Ø 42 mm
• Cable type: 2 x 0.5 mm²; fine-stranded
• Color code: Brown = S1; blue = S2

Physical Data

• Cable length: 5 m

Mechanical Data

• Mounting type: Split-core current transformer (suspended)

Material Data

• Flammability class per UL94: V2
• Fire load: 0.000 MJ
• Weight: 794.000 g

Environmental Requirements

• Surrounding air temperature (operation): -10 … 40 °C
• Surrounding air temperature (storage): -20 … 70 °C
• Relative humidity: 5 … 85 % (without condensation)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 61869-1 || EN 61869-2

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: NL
• GTIN: 4050821880660
• Customs tariff number Sales Organisation Germany: 85043180888
