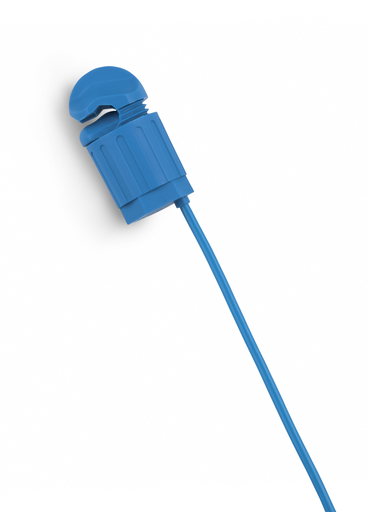

Features

• Safely tap the measurement voltage with just one turn
• Tool-free assembly
• Secure mounting
• Voltage taps (855-8001 and 855-8003) include a (5 x 25) mm 2 A fuse
• For insulated conductors up to 16 mm² (6 AWG)
• Cable length: 3 m

Specifications

Output – Voltage Tap

• Rated voltage: AC 400 V
• Continuous current (max.): 2 A
• Voltage drop at output (max.): ≤ AC 0.5 V

Test Voltage

• Test voltage: AC 3 kV; 50 Hz; 1 min

Connection Data

• Connection technology: IDC
• Solid conductor: 2.5 … 6 mm² / 14 … 10 AWG
• Fine-stranded conductor: 2.5 … 6 mm² / 14 … 10 AWG
• Feedthrough for measurement conductor: Ø 3 … 5 mm
• Cable type: Secondary side: 1 x 1.0 mm²; flexible; with ferrule

Physical Data

• Width: 23 mm / 0.906 inch
• Height: 50 mm / 1.969 inch
• Depth: 23 mm / 0.906 inch
• Cable length: 3 m

Mechanical Data

• Mounting type: Insulation displacement connection (IDC) || Mounting on insulated round cable
• Torque range: 1.5 … 2 Nm
• Usability: Can be reused several times (max. 24 times)

Material Data

• Flammability class per UL94: V2
• Housing material: PA 66
• Fire load: 0.000 MJ
• Weight: 20.000 g

Environmental Requirements

• Surrounding air temperature (operation): -5 … 55 °C
• Surrounding air temperature (storage): -20 … 70 °C
• Relative humidity: 5 … 85 % (without condensation)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 60947-7-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: NL
• GTIN: 4055143378857
• Customs tariff number Sales Organisation Germany: 85366990990
