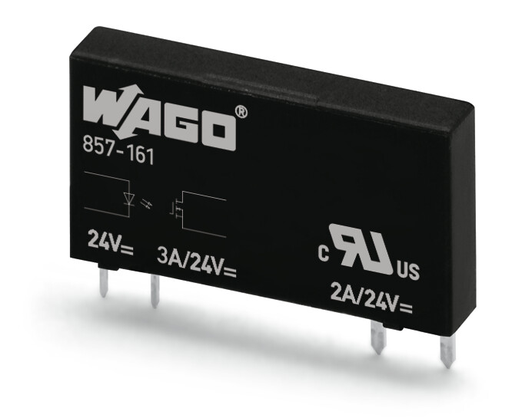

Features

Approvals

• Underwriters Laboratories Inc., UL, E340707, UL 508

Specifications

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range (low level): DC 0 … 10 V
• Input voltage range (high level): DC 18.8 … 31.2 V
• Nominal input current at UN: 7 mA

Load Circuit

• Circuit type: 2-wire connection
• Limiting continuous current: 3 A
• Inrush current (resistive) (max.): (AC) 15 A / 0.01 s
• Nominal output voltage: DC 24 V
• Output voltage range: DC 0 … 30 V
• Voltage drop at output (max.): ≤ DC 0.12 V
• Leakage current at rated voltage: ≤ 1 µA
• Switching current (min.): 50 µA
• Turn-on time: ≤ 100 µs
• Turn-off time: ≤ 600 µs
• Switching frequency: ≤ 350 Hz

Safety And Protection

• Dielectric strength, control/load circuit (AC, 1 min): 3.75 kVrms

Physical Data

• Width: 5 mm / 0.197 inch
• Height from the surface: 15 mm / 0.591 inch
• Depth: 28 mm / 1.102 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.000 MJ
• Weight: 4.895 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -30 … 80 °C
• Surrounding air temperature (storage): -40 … 100 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454997632
• Customs tariff number Sales Organisation Germany: 85365005000
