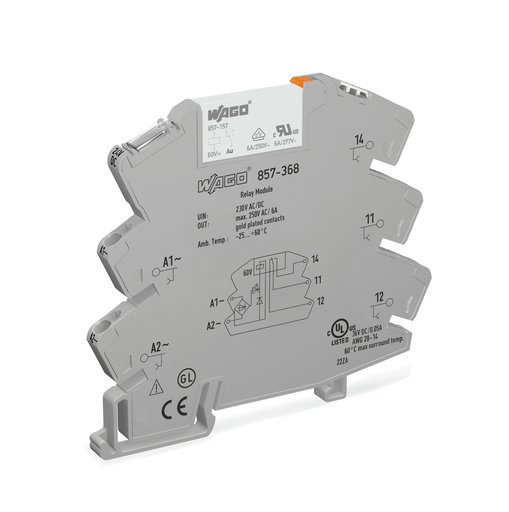

Features

Approvals

• UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
• Nippon Kaiji Kyokai, NK, TA17255M
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
• Polski Rejestr Statków, PRS, TE/2186/880590/18
• Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
• Underwriters Laboratories Inc., UL, E198726, UL 121201
• CQST/CNEx, CCCEx, 2020312304000757, CNCA-C23-01
• DEKRA EXAM GmbH, IECEx, IECEx_BVS_14.0079_X, IEC 60079-0
• DEKRA EXAM GmbH, ATEX, BVS_14_ATEX_E_091_X, EN 60079-0

Specifications

Notes

• Note: To prevent damaging the gold layer, 30 V switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Control Circuit

• Nominal input voltage UN: AC/DC 230 V
• Input voltage range: -20 … +10 %
• Nominal input current at UN: 3.5 mA

Load Circuit

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgNi + Au
• Limiting continuous current: 6 A
• Inrush current (resistive) (max.): (AC) 20 A / 0.02 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1500 VA; DC (see load limit curve)
• Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
• Recommended minimum load: 1 V / 1 mA / 1 mW
• Pull-in time (typ.): 15 ms
• Drop-out time (typ.): 25 ms
• Bounce time (typ.): 3.5 ms
• Electrical life (NO; resistive load; 23 °C): 50 x 103 switching operations
• Mechanical life: 5 x 106 switching operations
• Switching frequency with/without load (max.): 6 min-1 / 180 min-1

Signaling

• Status indicator: Yellow LED

Safety And Protection

• Rated voltage: 300 V
• Rated surge voltage: 4 kV
• Circuit type: Mains circuits
• Overvoltage category: III
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3.51 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the the same type): Reinforced insulation (safe isolation)
• Protection type: IP20

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 81 mm / 3.189 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.647 MJ
• Weight: 30.277 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 60 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 61810-1 || EN 61373 || UL 508 || GL || ATEX || IEC Ex

Basic Relay

• WAGO Basic Relay: 857-157

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454673482
• Customs tariff number Sales Organisation Germany: 85364900990
