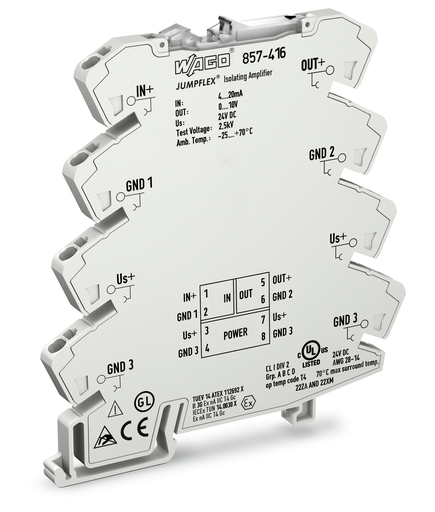

Features

• Input/output: current or voltage signal
• Safe 3-way isolation with 2.5 kV test voltage per EN 61140

Approvals

• Polski Rejestr Statków, PRS, TE/2186/880590/18
• Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
• TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
• TUEV Nord Cert GmbH, IECEx, TÜV_14_ATEX_112692_X, EN 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
• Nippon Kaiji Kyokai, NK, TA17255M
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
• Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
• CQST/CNEx, CCCEx, 2020312310000210, CNCA-C23-01
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011

Specifications

Notes

• Note: The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.)

Configuration

• Configuration options: Pre-configured

Input

• Input signal type: Current
• Input signal (current): 4 … 20 mA
• Input resistance (current input): ≤ 50 Ω
• Input current (max.): 50 mA

Output – Analog

• Output signal type: Voltage
• Output signal (voltage): 0 … 10 V
• Load impedance (voltage output): ≥ 2 kΩ

Signal Processing

• Limit frequency: 100 Hz
• Step response (typ.): 3.5 ms

Measurement Error

• Transmission error (typ.): ≤ 0.1 % of upper-range value
• Temperature coefficient: ≤ 0.01 %/K

Supply

• Power supply type: 24 VDC
• Nominal supply voltage US: DC 24 V
• Supply voltage range: ±30 %
• Power consumption at nominal supply voltage: ≤ 25 mA

Test Voltage

• Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 35.800 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2
• EMC emission of interference: EN 61000-6-4

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454609849
• Customs tariff number Sales Organisation Germany: 85437090300
